ELKI: Environment for DeveLoping KDD-Applications Supported by Index-Structures.

ELKI is a generic framework for a broad range of KDD-applications and their development. For background, contact-information, and contributors see http://www.dbs.ifi.lmu.de/research/KDD/ELKI/.

This is the documentation for version 0.3, published as:
Achtert, E., Kriegel, H.-P., Reichert, L., Schubert, E., Wojdanowski, R., and Zimek, A.:
Visual Evaluation of Outlier Detection Models.
In Proc. 15th International Conference on Database Systems for Advanced Applications (DASFAA), Tsukuba, Japan, 2010.

Workflow - Where Do Which Objects Go?

The database connection manages reading of input files or databases and provides a Database-Object as a virtual database to the KDDTask. The KDDTask applies a specified algorithm on this database and collects the result from the algorithm. Finally, KDDTask hands on the obtained result to a ResultHandler. The default-handler is ResultWriter, writing the result to STDOUT or, if specified, into a file.

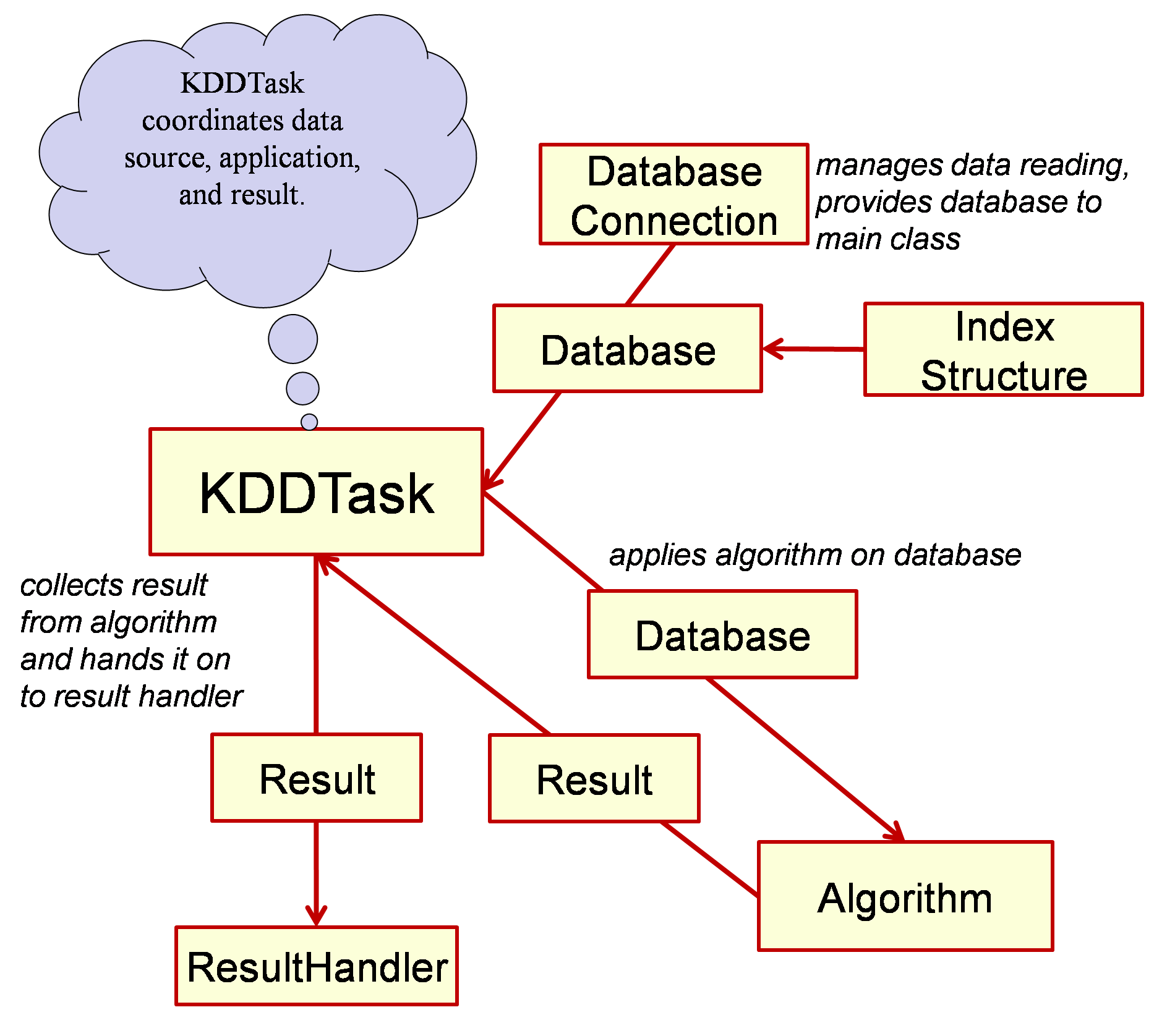

visualization of passing of objects

How to make use of this framework

Development of new applications


To provide new applications one is simply to implement the specified interfaces. There are interfaces for a broad range of targets of development. Compare the tree of interfaces to get an overview concerning the provided interfaces.


To use the KDD-Framework we recommend an executable .jar-file: elki.jar. Since release 0.3 it will by default invoke a minimalistic GUI when you call java -jar elki.jar. For command line use, you get a description of usage by calling java -cp elki.jar de.lmu.ifi.dbs.elki.application.KDDCLIApplication -h.

You can read more about the MiniGUI and Visualizations on a separate page. The KNNExplorer application published with ELKI 0.2 is explained in the technical documentation.

Parameters and Parameter-Passing

The core class is KDDTask for command line interaction. This class' main method manages the reading of parameters from the standard input and passes the parameters to the corresponding classes which, in turn, could have parameters that expect parameterization.

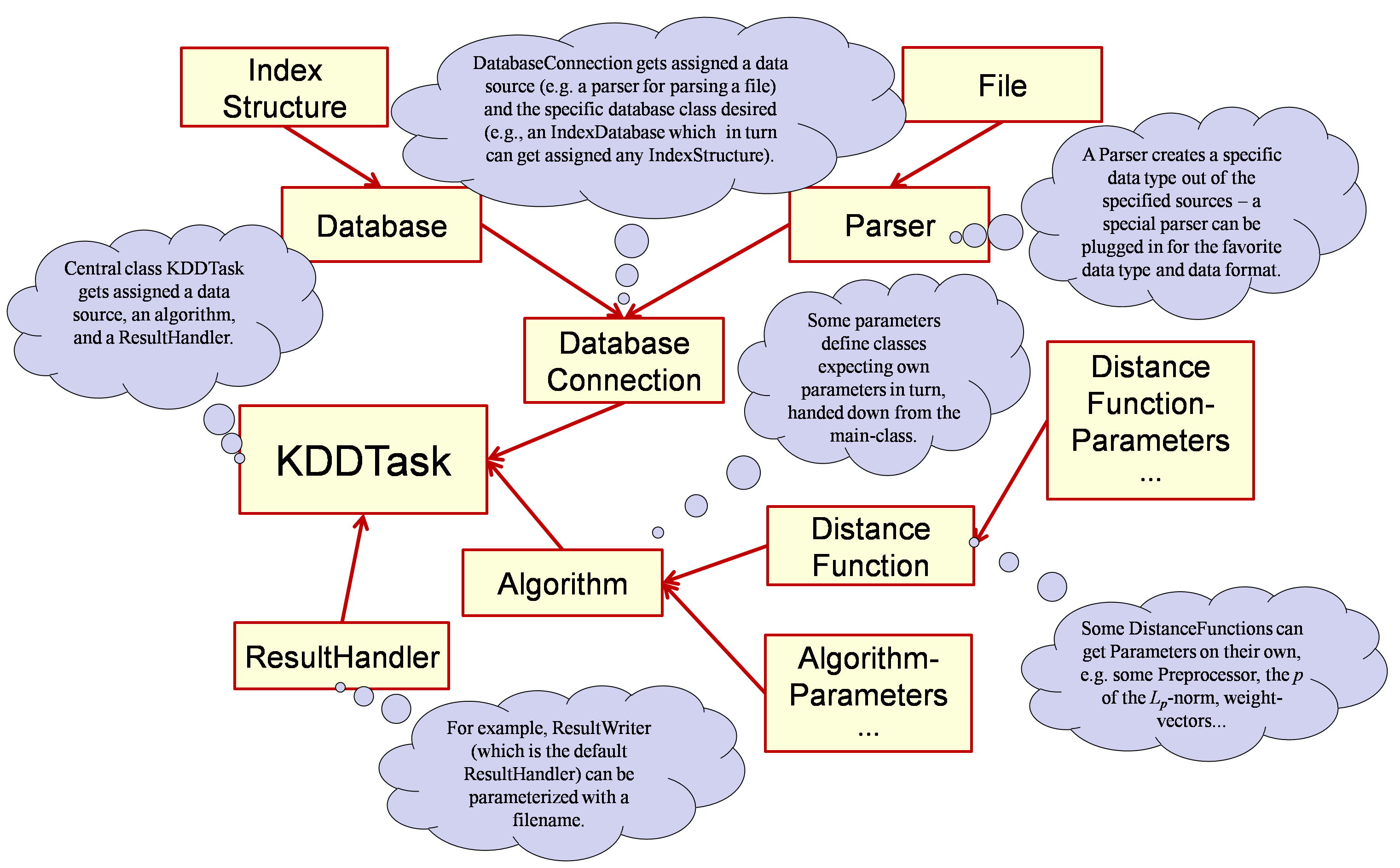

visualization of parameterization

The main class KDDTask requires specification of an Algorithm to use, and a DatabaseConnection to manage the input. It can get assigned a specialized ResultHandler. The default ResultHandler ResultWriter expects a filename where to deploy the output. However, by omitting specification of a filename for output, the results will be given to standard output, thus it may be piped directly to another application.

For more information on using files and available formats as data input see de.lmu.ifi.dbs.elki.parser.

Furthermore a normalization can be specified for the input. You can additionally require to restore the original values for the output.

Which input is to be provided in what way is to be defined via parameters specifically for a certain DatabaseConnection.

The need for other parameters may differ from implementation to implementation. However, you need not to specify input nor output if you are going to implement an algorithm.

An extensive list of parameters can be browsed sorted by class or sorted by option ID.

Some examples of completely parameterized calls for different algorithms are described at example calls.

A list of related articles can be found in the class article references list.

Release 0.3 (2010-03-31_1612)
