de.lmu.ifi.dbs.elki.visualization.visualizers.vis2d

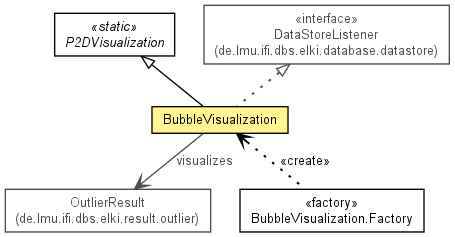

Class BubbleVisualization<NV extends NumberVector<NV,?>>

java.lang.Object
  de.lmu.ifi.dbs.elki.visualization.visualizers.AbstractVisualization
      de.lmu.ifi.dbs.elki.visualization.visualizers.vis2d.P2DVisualization<NV>
          de.lmu.ifi.dbs.elki.visualization.visualizers.vis2d.BubbleVisualization<NV>

Type Parameters:

NV - Type of the DatabaseObject being visualized.

All Implemented Interfaces:

DataStoreListener, ResultListener, ContextChangeListener, Visualization, EventListener

@Reference(authors="E. Achtert, H.-P. Kriegel, L. Reichert, E. Schubert, R. Wojdanowski, A. Zimek",
           title="Visual Evaluation of Outlier Detection Models",
           booktitle="Proceedings of the 15th International Conference on Database Systems for Advanced Applications (DASFAA), Tsukuba, Japan, 2010",
           url="http://dx.doi.org/10.1007%2F978-3-642-12098-5_34")
public class BubbleVisualization<NV extends NumberVector<NV,?>>
extends P2DVisualization<NV>
implements DataStoreListener

Generates a SVG-Element containing bubbles. A Bubble is a circle visualizing an outlierness-score, with its center at the position of the visualized object and its radius depending on the objects score.

Nested Class Summary

static class

BubbleVisualization.Factory<NV extends NumberVector<NV,?>> Factory for producing bubble visualizations

Field Summary

static String	BUBBLE Generic tag to indicate the type of element.
protected boolean	fill Fill parameter.
static String	NAME A short name characterizing this Visualizer.
protected OutlierResult	result The outlier result to visualize
protected ScalingFunction	scaling Scaling function to use for Bubbles

Fields inherited from class de.lmu.ifi.dbs.elki.visualization.visualizers.vis2d.P2DVisualization

proj, rel

Fields inherited from class de.lmu.ifi.dbs.elki.visualization.visualizers.AbstractVisualization

context, layer, pendingRedraw, svgp, task

Constructor Summary

BubbleVisualization(VisualizationTask task, ScalingFunction scaling)
Constructor.

Method Summary

void	contentChanged(DataStoreEvent e) Invoked after objects of the datastore have been updated, inserted or removed in some way.
void	destroy() Destroy the visualization.
protected Double	getScaledForId(DBID id) Convenience method to apply scalings in the right order.
void	redraw() Perform a full redraw.
private void	setupCSS(SVGPlot svgp, Clustering<? extends Model> clustering) Registers the Bubble-CSS-Class at a SVGPlot.

Methods inherited from class de.lmu.ifi.dbs.elki.visualization.visualizers.vis2d.P2DVisualization

setupCanvas

Methods inherited from class de.lmu.ifi.dbs.elki.visualization.visualizers.AbstractVisualization

contextChanged, getHeight, getLayer, getWidth, incrementalRedraw, resultAdded, resultChanged, resultRemoved, synchronizedRedraw, testRedraw

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

BUBBLE

public static final String BUBBLE

Generic tag to indicate the type of element. Used in IDs, CSS-Classes etc.

See Also:

Constant Field Values

NAME

public static final String NAME

A short name characterizing this Visualizer.

See Also:

Constant Field Values

fill

protected boolean fill

Fill parameter.

scaling

protected ScalingFunction scaling

Scaling function to use for Bubbles

result

protected OutlierResult result

The outlier result to visualize

Constructor Detail

BubbleVisualization

public BubbleVisualization(VisualizationTask task,
                           ScalingFunction scaling)

Constructor.

Parameters:

task - Visualization task

scaling - Scaling function

Method Detail

destroy

public void destroy()

Description copied from interface: Visualization

Destroy the visualization. Called after the elements have been removed from the document. Implementations should remove their listeners etc.

Specified by:

destroy in interface Visualization

Overrides:

destroy in class AbstractVisualization

redraw

public void redraw()

Description copied from class: AbstractVisualization

Perform a full redraw.

Specified by:

redraw in class AbstractVisualization

contentChanged

public void contentChanged(DataStoreEvent e)

Description copied from interface: DataStoreListener

Invoked after objects of the datastore have been updated, inserted or removed in some way.

Specified by:

contentChanged in interface DataStoreListener

Parameters:

e - the update event

setupCSS

private void setupCSS(SVGPlot svgp,
                      Clustering<? extends Model> clustering)

Registers the Bubble-CSS-Class at a SVGPlot.

Parameters:

svgp - the SVGPlot to register the Tooltip-CSS-Class.

clustering - Clustering to use

getScaledForId

protected Double getScaledForId(DBID id)

Convenience method to apply scalings in the right order.

Parameters:

id - object ID to get scaled score for

Returns:

a Double representing a outlierness-score, after it has modified by the given scales.
