de.lmu.ifi.dbs.elki.visualization.svg

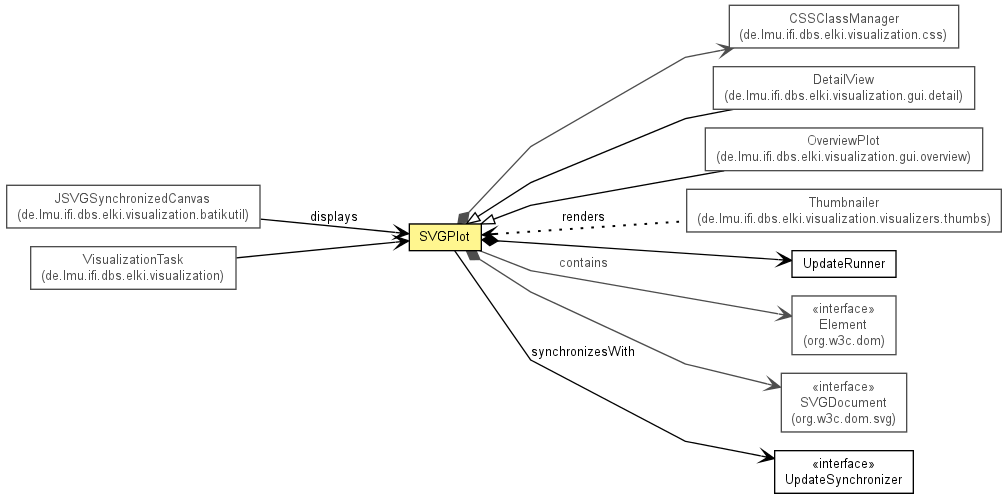

Class SVGPlot

java.lang.Object
  de.lmu.ifi.dbs.elki.visualization.svg.SVGPlot

Direct Known Subclasses:

DetailView, OverviewPlot

public class SVGPlot
extends Object

Base class for SVG plots. Provides some basic functionality such as element creation, axis plotting, markers and number formatting for SVG.

Field Summary

private CSSClassManager	cssman CSS class manager
static double	DEFAULT_QUALITY Default JPEG quality setting
private Element	defs Definitions element of the document.
private boolean	disableInteractions Flag whether Batik interactions should be disabled.
private org.w3c.dom.svg.SVGDocument	document SVG document we plot to.
private HashMap<String,WeakReference<Element>>	objWithId Manage objects with an id.
private Element	root Root element of the document.
private UpdateRunner	runner Registers changes of this SVGPlot.
private Element	style Primary style information

Constructor Summary

SVGPlot()
Create a new plotting document.

Method Summary

void	addCSSClassOrLogError(CSSClass cls) Convenience method to add a CSS class or log an error.
void	dispose() Clean up the plot.
void	dumpDebugFile() Dump the SVG plot to a debug file.
org.w3c.dom.svg.SVGPoint	elementCoordinatesFromEvent(Element tag, Event evt) Convert screen coordinates to element coordinates.
protected Collection<String>	getAllIds() Get all used DOM Ids in this plot.
CSSClassManager	getCSSClassManager() Get the plots CSS class manager.
Element	getDefs() Getter for definitions section
boolean	getDisableInteractions() Get Batik disable default interactions flag.
org.w3c.dom.svg.SVGDocument	getDocument() Retrieve the SVG document.
Element	getIdElement(String id) Get an element by its id.
Element	getRoot() Getter for root element.
Element	getStyle() Deprecated. Contents will be overwritten by CSS class manager!
private UpdateRunner	getUpdateRunner() Get the plots update runner.
void	putIdElement(String id, Element obj) Add an object id.
void	saveAsANY(File file, int width, int height, double quality) Save a file trying to auto-guess the file type.
void	saveAsEPS(File file) Transcode file to EPS.
void	saveAsJPEG(File file, int width, int height) Transcode file to JPEG.
void	saveAsJPEG(File file, int width, int height, double quality) Transcode file to JPEG.
void	saveAsPDF(File file) Transcode file to PDF.
void	saveAsPNG(File file, int width, int height) Transcode file to PNG.
void	saveAsPS(File file) Transcode file to PS.
void	saveAsSVG(File file) Save document into a SVG file.
void	scheduleUpdate(Runnable runnable) Schedule an update.
void	setDisableInteractions(boolean disable) Disable Batik predefined interactions.
Element	svgCircle(double cx, double cy, double r) Create a SVG circle
Element	svgElement(String name) Create a SVG element in the SVG namespace.
Element	svgLine(double x1, double y1, double x2, double y2) Create a SVG line element
Element	svgRect(double x, double y, double w, double h) Create a SVG rectangle
Element	svgText(double x, double y, String text) Create a SVG text element.
void	synchronizeWith(UpdateSynchronizer sync) Assign an update synchronizer.
protected void	transcode(File file, org.apache.batik.transcoder.Transcoder transcoder) Transcode a document into a file using the given transcoder.
void	unsynchronizeWith(UpdateSynchronizer sync) Detach from synchronization.
void	updateStyleElement() Update style element - invoke this appropriately after any change to the CSS styles.

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Detail

DEFAULT_QUALITY

public static final double DEFAULT_QUALITY

Default JPEG quality setting

See Also:

Constant Field Values

document

private org.w3c.dom.svg.SVGDocument document

SVG document we plot to.

root

private Element root

Root element of the document.

defs

private Element defs

Definitions element of the document.

style

private Element style

Primary style information

cssman

private CSSClassManager cssman

CSS class manager

objWithId

private HashMap<String,WeakReference<Element>> objWithId

Manage objects with an id.

runner

private UpdateRunner runner

Registers changes of this SVGPlot.

disableInteractions

private boolean disableInteractions

Flag whether Batik interactions should be disabled.

Constructor Detail

SVGPlot

public SVGPlot()

Create a new plotting document.

Method Detail

dispose

public void dispose()

Clean up the plot.

svgElement

public Element svgElement(String name)

Create a SVG element in the SVG namespace. Non-static version.

Parameters:

name - node name

Returns:

new SVG element.

svgRect

public Element svgRect(double x,
                       double y,
                       double w,
                       double h)

Create a SVG rectangle

Parameters:

x - X coordinate

y - Y coordinate

w - Width

h - Height

Returns:

new element

svgCircle

public Element svgCircle(double cx,
                         double cy,
                         double r)

Create a SVG circle

Parameters:

cx - center X

cy - center Y

r - radius

Returns:

new element

svgLine

public Element svgLine(double x1,
                       double y1,
                       double x2,
                       double y2)

Create a SVG line element

Parameters:

x1 - first point x

y1 - first point y

x2 - second point x

y2 - second point y

Returns:

new element

svgText

public Element svgText(double x,
                       double y,
                       String text)

Create a SVG text element.

Parameters:

x - first point x

y - first point y

text - Content of text element.

Returns:

New text element.

elementCoordinatesFromEvent

public org.w3c.dom.svg.SVGPoint elementCoordinatesFromEvent(Element tag,
                                                            Event evt)

Convert screen coordinates to element coordinates.

Parameters:

tag - Element to convert the coordinates for

evt - Event object

Returns:

Coordinates

getDocument

public org.w3c.dom.svg.SVGDocument getDocument()

Retrieve the SVG document.

Returns:

resulting document.

getRoot

public Element getRoot()

Getter for root element.

Returns:

DOM element

getDefs

public Element getDefs()

Getter for definitions section

Returns:

DOM element

getStyle

@Deprecated
public Element getStyle()

Deprecated. Contents will be overwritten by CSS class manager!

Getter for style element.

Returns:

stylesheet DOM element

getCSSClassManager

public CSSClassManager getCSSClassManager()

Get the plots CSS class manager. Note that you need to invoke updateStyleElement() to make changes take effect.

Returns:

CSS class manager.

addCSSClassOrLogError

public void addCSSClassOrLogError(CSSClass cls)

Convenience method to add a CSS class or log an error.

Parameters:

cls - CSS class to add.

updateStyleElement

public void updateStyleElement()

Update style element - invoke this appropriately after any change to the CSS styles.

saveAsSVG

public void saveAsSVG(File file)
               throws IOException,
                      TransformerFactoryConfigurationError,
                      TransformerException

Save document into a SVG file. References PNG images from the temporary files will be inlined automatically.

Parameters:

file - Output filename

Throws:

IOException - On write errors

TransformerFactoryConfigurationError - Transformation error

TransformerException - Transformation error

transcode

protected void transcode(File file,
                         org.apache.batik.transcoder.Transcoder transcoder)
                  throws IOException,
                         org.apache.batik.transcoder.TranscoderException

Transcode a document into a file using the given transcoder.

Parameters:

file - Output file

transcoder - Transcoder to use

Throws:

IOException - On write errors

org.apache.batik.transcoder.TranscoderException - On input/parsing errors

saveAsPDF

public void saveAsPDF(File file)
               throws IOException,
                      org.apache.batik.transcoder.TranscoderException

Transcode file to PDF.

Parameters:

file - Output filename

Throws:

IOException - On write errors

org.apache.batik.transcoder.TranscoderException - On input/parsing errors.

saveAsPS

public void saveAsPS(File file)
              throws IOException,
                     org.apache.batik.transcoder.TranscoderException

Transcode file to PS.

Parameters:

file - Output filename

Throws:

IOException - On write errors

org.apache.batik.transcoder.TranscoderException - On input/parsing errors.

saveAsEPS

public void saveAsEPS(File file)
               throws IOException,
                      org.apache.batik.transcoder.TranscoderException

Transcode file to EPS.

Parameters:

file - Output filename

Throws:

IOException - On write errors

org.apache.batik.transcoder.TranscoderException - On input/parsing errors.

saveAsPNG

public void saveAsPNG(File file,
                      int width,
                      int height)
               throws IOException,
                      org.apache.batik.transcoder.TranscoderException

Transcode file to PNG.

Parameters:

file - Output filename

width - Width

height - Height

Throws:

IOException - On write errors

org.apache.batik.transcoder.TranscoderException - On input/parsing errors.

saveAsJPEG

public void saveAsJPEG(File file,
                       int width,
                       int height,
                       double quality)
                throws IOException,
                       org.apache.batik.transcoder.TranscoderException

Transcode file to JPEG.

Parameters:

file - Output filename

width - Width

height - Height

quality - JPEG quality setting, between 0.0 and 1.0

Throws:

IOException - On write errors

org.apache.batik.transcoder.TranscoderException - On input/parsing errors.

saveAsJPEG

public void saveAsJPEG(File file,
                       int width,
                       int height)
                throws IOException,
                       org.apache.batik.transcoder.TranscoderException

Transcode file to JPEG.

Parameters:

file - Output filename

width - Width

height - Height

Throws:

IOException - On write errors

org.apache.batik.transcoder.TranscoderException - On input/parsing errors.

saveAsANY

public void saveAsANY(File file,
                      int width,
                      int height,
                      double quality)
               throws IOException,
                      org.apache.batik.transcoder.TranscoderException,
                      TransformerFactoryConfigurationError,
                      TransformerException

Save a file trying to auto-guess the file type.

Parameters:

file - File name

width - Width (for pixel formats)

height - Height (for pixel formats)

quality - Quality (for lossy compression)

Throws:

IOException - on file write errors or unrecognized file extensions

org.apache.batik.transcoder.TranscoderException - on transcoding errors

TransformerFactoryConfigurationError - on transcoding errors

TransformerException - on transcoding errors

dumpDebugFile

public void dumpDebugFile()

Dump the SVG plot to a debug file.

putIdElement

public void putIdElement(String id,
                         Element obj)

Add an object id.

Parameters:

id - ID

obj - Element

getIdElement

public Element getIdElement(String id)

Get an element by its id.

Parameters:

id - ID

Returns:

Element

getAllIds

protected Collection<String> getAllIds()

Get all used DOM Ids in this plot.

Returns:

Collection of DOM element IDs.

getUpdateRunner

private UpdateRunner getUpdateRunner()

Get the plots update runner.

Returns:

update runner

scheduleUpdate

public void scheduleUpdate(Runnable runnable)

Schedule an update.

Parameters:

runnable - Runnable to schedule

synchronizeWith

public void synchronizeWith(UpdateSynchronizer sync)

Assign an update synchronizer.

Parameters:

sync - Update synchronizer

unsynchronizeWith

public void unsynchronizeWith(UpdateSynchronizer sync)

Detach from synchronization.

Parameters:

sync - Update synchronizer to detach from.

getDisableInteractions

public boolean getDisableInteractions()

Get Batik disable default interactions flag.

Returns:

true when Batik default interactions are disabled

setDisableInteractions

public void setDisableInteractions(boolean disable)

Disable Batik predefined interactions.

Parameters:

disable - Flag
