de.lmu.ifi.dbs.elki.index.tree.metrical.mtreevariants.mktrees.mkmax
Class MkMaxTreeNode<O,D extends Distance<D>>

java.lang.Object
  extended by de.lmu.ifi.dbs.elki.persistent.AbstractPage
      extended by de.lmu.ifi.dbs.elki.index.tree.AbstractNode<E>
          extended by de.lmu.ifi.dbs.elki.index.tree.metrical.mtreevariants.AbstractMTreeNode<O,D,MkMaxTreeNode<O,D>,MkMaxEntry<D>>
              extended by de.lmu.ifi.dbs.elki.index.tree.metrical.mtreevariants.mktrees.mkmax.MkMaxTreeNode<O,D>
Type Parameters:
O - the type of DatabaseObject to be stored in the MkMaxTree
D - the type of Distance used in the MkMaxTree
All Implemented Interfaces:
Node<MkMaxEntry<D>>, Page, Externalizable, Serializable

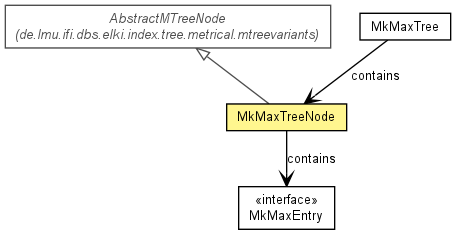

 class MkMaxTreeNode<O,D extends Distance<D>>
extends AbstractMTreeNode<O,D,MkMaxTreeNode<O,D>,MkMaxEntry<D>>

Represents a node in an MkMaxTree.


Field Summary
private static long serialVersionUID
          Serial version

Fields inherited from class de.lmu.ifi.dbs.elki.index.tree.AbstractNode
entries, isLeaf, numEntries

Constructor Summary
MkMaxTreeNode()
          Empty constructor for Externalizable interface.
MkMaxTreeNode(int capacity, boolean isLeaf)
          Creates a new MkMaxTreeNode object.

Method Summary
 void adjustEntry(MkMaxEntry<D> entry, DBID routingObjectID, D parentDistance, AbstractMTree<O,D,MkMaxTreeNode<O,D>,MkMaxEntry<D>> mTree)
          Calls the super method and adjust additionally the k-nearest neighbor distance of this node as the maximum of the k-nearest neighbor distances of all its entries.
protected  void integrityCheckParameters(MkMaxEntry<D> parentEntry, MkMaxTreeNode<O,D> parent, int index, AbstractMTree<O,D,MkMaxTreeNode<O,D>,MkMaxEntry<D>> mTree)
          Calls the super method and tests if the k-nearest neighbor distance of this node is correctly set.
protected  D kNNDistance(DistanceQuery<O,D> distanceFunction)
          Determines and returns the k-nearest neighbor distance of this node as the maximum of the k-nearest neighbor distances of all entries.

Methods inherited from class de.lmu.ifi.dbs.elki.index.tree.metrical.mtreevariants.AbstractMTreeNode
coveringRadius, integrityCheck

Methods inherited from class de.lmu.ifi.dbs.elki.index.tree.AbstractNode
addDirectoryEntry, addLeafEntry, children, deleteAllEntries, deleteEntry, equals, getCapacity, getEntries, getEntry, getNumEntries, isLeaf, readExternal, splitTo, splitTo, toString, writeExternal

Methods inherited from class de.lmu.ifi.dbs.elki.persistent.AbstractPage
getPageID, hashCode, isDirty, setDirty, setPageID

Methods inherited from class java.lang.Object
clone, finalize, getClass, notify, notifyAll, wait, wait, wait

Methods inherited from interface de.lmu.ifi.dbs.elki.persistent.Page
getPageID, isDirty, setDirty, setPageID


Field Detail

serialVersionUID

private static final long serialVersionUID
Serial version

See Also:
Constant Field Values
Constructor Detail

MkMaxTreeNode

public MkMaxTreeNode()
Empty constructor for Externalizable interface.


MkMaxTreeNode

public MkMaxTreeNode(int capacity,
                     boolean isLeaf)
Creates a new MkMaxTreeNode object.

Parameters:
capacity - the capacity (maximum number of entries plus 1 for overflow) of this node
isLeaf - indicates whether this node is a leaf node
Method Detail

kNNDistance

protected D kNNDistance(DistanceQuery<O,D> distanceFunction)
Determines and returns the k-nearest neighbor distance of this node as the maximum of the k-nearest neighbor distances of all entries.

Parameters:
distanceFunction - the distance function
Returns:
the knn distance of this node

adjustEntry

public void adjustEntry(MkMaxEntry<D> entry,
                        DBID routingObjectID,
                        D parentDistance,
                        AbstractMTree<O,D,MkMaxTreeNode<O,D>,MkMaxEntry<D>> mTree)
Calls the super method and adjust additionally the k-nearest neighbor distance of this node as the maximum of the k-nearest neighbor distances of all its entries.

Overrides:
adjustEntry in class AbstractMTreeNode<O,D extends Distance<D>,MkMaxTreeNode<O,D extends Distance<D>>,MkMaxEntry<D extends Distance<D>>>
Parameters:
entry - the entry representing this node
routingObjectID - the id of the (new) routing object of this node
parentDistance - the distance from the routing object of this node to the routing object of the parent node
mTree - the M-Tree object holding this node

integrityCheckParameters

protected void integrityCheckParameters(MkMaxEntry<D> parentEntry,
                                        MkMaxTreeNode<O,D> parent,
                                        int index,
                                        AbstractMTree<O,D,MkMaxTreeNode<O,D>,MkMaxEntry<D>> mTree)
Calls the super method and tests if the k-nearest neighbor distance of this node is correctly set.

Overrides:
integrityCheckParameters in class AbstractMTreeNode<O,D extends Distance<D>,MkMaxTreeNode<O,D extends Distance<D>>,MkMaxEntry<D extends Distance<D>>>
Parameters:
parentEntry - the entry representing the parent
parent - the parent holding the entry representing this node
index - the index of the entry in the parents child arry
mTree - the M-Tree holding this node
