de.lmu.ifi.dbs.elki.index.tree.metrical.mtreevariants.mktrees
Class AbstractMkTreeUnified<O,D extends Distance<D>,N extends AbstractMTreeNode<O,D,N,E>,E extends MTreeEntry<D>>

java.lang.Object
  de.lmu.ifi.dbs.elki.index.tree.IndexTree<N,E>
      de.lmu.ifi.dbs.elki.index.tree.metrical.MetricalIndexTree<O,D,N,E>
          de.lmu.ifi.dbs.elki.index.tree.metrical.mtreevariants.AbstractMTree<O,D,N,E>
              de.lmu.ifi.dbs.elki.index.tree.metrical.mtreevariants.mktrees.AbstractMkTree<O,D,N,E>
                  de.lmu.ifi.dbs.elki.index.tree.metrical.mtreevariants.mktrees.AbstractMkTreeUnified<O,D,N,E>

Type Parameters:

O - the type of DatabaseObject to be stored in the metrical index

D - the type of Distance used in the metrical index

N - the type of MetricalNode used in the metrical index

E - the type of MetricalEntry used in the metrical index

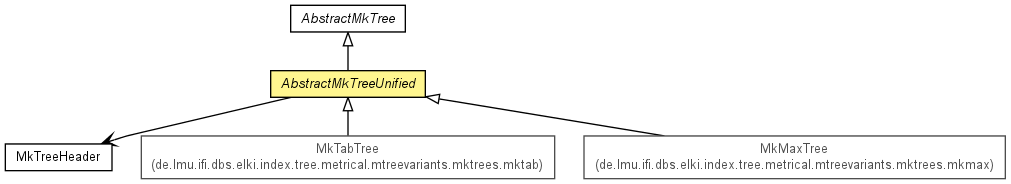

Direct Known Subclasses:

MkMaxTree, MkTabTree

public abstract class AbstractMkTreeUnified<O,D extends Distance<D>,N extends AbstractMTreeNode<O,D,N,E>,E extends MTreeEntry<D>>
extends AbstractMkTree<O,D,N,E>

Abstract class for all M-Tree variants supporting processing of reverse k-nearest neighbor queries by using the k-nn distances of the entries, where k is less than or equal to the given parameter.

Field Summary

private int

k_max Holds the maximum value of k to support.

Fields inherited from class de.lmu.ifi.dbs.elki.index.tree.metrical.mtreevariants.AbstractMTree

distanceFunction, distanceQuery, extraIntegrityChecks

Fields inherited from class de.lmu.ifi.dbs.elki.index.tree.IndexTree

dirCapacity, dirMinimum, initialized, leafCapacity, leafMinimum

Constructor Summary

AbstractMkTreeUnified(PageFile<N> pagefile, DistanceQuery<O,D> distanceQuery, DistanceFunction<O,D> distanceFunction, int k_max)
Constructor.

Method Summary

protected TreeIndexHeader	createHeader() Creates a header for this index structure which is an instance of TreeIndexHeader.
int	getKmax() Get the value of k_max.
void	insertAll(List<E> entries) Bulk insert.
protected abstract void	kNNdistanceAdjustment(E entry, Map<DBID,KNNHeap<D>> knnLists) Performs a distance adjustment in the subtree of the specified root entry.

Methods inherited from class de.lmu.ifi.dbs.elki.index.tree.metrical.mtreevariants.mktrees.AbstractMkTree

reverseKNNQuery

Methods inherited from class de.lmu.ifi.dbs.elki.index.tree.metrical.mtreevariants.AbstractMTree

batchNN, createEmptyRoot, createNewDirectoryEntry, distance, distance, doKNNQuery, getDistanceFactory, getDistanceFunction, getDistanceQuery, getHeight, getLeaves, getSortedEntries, getSortedEntries, insert, toString

Methods inherited from class de.lmu.ifi.dbs.elki.index.tree.IndexTree

createNewDirectoryNode, createNewLeafNode, createRootEntry, deleteNode, getFile, getLogger, getNode, getNode, getPageFileStatistics, getPageID, getPageSize, getRoot, getRootEntry, getRootID, getRootPath, initialize, initialize, initializeCapacities, initializeFromFile, isRoot, postDelete, preInsert, writeNode

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

k_max

private int k_max

Holds the maximum value of k to support.

Constructor Detail

AbstractMkTreeUnified

public AbstractMkTreeUnified(PageFile<N> pagefile,
                             DistanceQuery<O,D> distanceQuery,
                             DistanceFunction<O,D> distanceFunction,
                             int k_max)

Constructor.

Parameters:

pagefile - Page file

distanceQuery - Distance query

distanceFunction - Distance function

k_max - Maximum value for k

Method Detail

createHeader

protected TreeIndexHeader createHeader()

Description copied from class: IndexTree

Creates a header for this index structure which is an instance of TreeIndexHeader. Subclasses may need to overwrite this method if they need a more specialized header.

Overrides:

createHeader in class IndexTree<N extends AbstractMTreeNode<O,D,N,E>,E extends MTreeEntry<D>>

Returns:

a new MkTreeHeader

insertAll

public void insertAll(List<E> entries)

Description copied from class: AbstractMTree

Bulk insert.

Overrides:

insertAll in class AbstractMTree<O,D extends Distance<D>,N extends AbstractMTreeNode<O,D,N,E>,E extends MTreeEntry<D>>

kNNdistanceAdjustment

protected abstract void kNNdistanceAdjustment(E entry,
                                              Map<DBID,KNNHeap<D>> knnLists)

Performs a distance adjustment in the subtree of the specified root entry.

Parameters:

entry - the root entry of the current subtree

knnLists - a map of knn lists for each leaf entry

getKmax

public int getKmax()

Get the value of k_max.

Returns:

k_max value.
