tutorial.outlier

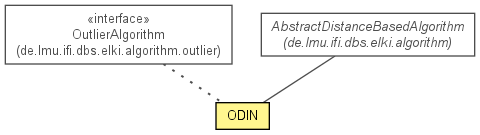

Class ODIN<O,D extends Distance<D>>

java.lang.Object

de.lmu.ifi.dbs.elki.algorithm.AbstractAlgorithm<R>

de.lmu.ifi.dbs.elki.algorithm.AbstractDistanceBasedAlgorithm<O,D,OutlierResult>

tutorial.outlier.ODIN<O,D>

Type Parameters:

O - Object type

D - Distance type

All Implemented Interfaces:

Algorithm, OutlierAlgorithm, Parameterizable

@Reference(authors="V. Hautam\u00e4ki and I. K\u00e4rkk\u00e4inen and P Fr\u00e4nti",
           title="Outlier detection using k-nearest neighbour graph",
           booktitle="Proc. 17th Int. Conf. Pattern Recognition, ICPR 2004",
           url="http://dx.doi.org/10.1109/ICPR.2004.1334558")
public class ODIN<O,D extends Distance<D>>
extends AbstractDistanceBasedAlgorithm<O,D,OutlierResult>
implements OutlierAlgorithm

Outlier detection based on the in-degree of the kNN graph. This is a curried version: instead of using a threshold T to obtain a binary decision, we use the computed value as outlier score. Reference:

V. Hautamäki and I. Kärkkäinen and P Fränti
Outlier detection using k-nearest neighbour graph
Proc. 17th Int. Conf. Pattern Recognition, ICPR 2004

Nested Class Summary

Nested Classes

Modifier and Type	Class and Description
static class	ODIN.Parameterizer<O,D extends Distance<D>> Parameterization class.

Field Summary

Fields

Modifier and Type	Field and Description
(package private) int	k Number of neighbors for kNN graph.
private static Logging	LOG Class logger.

Fields inherited from class de.lmu.ifi.dbs.elki.algorithm.AbstractDistanceBasedAlgorithm

DISTANCE_FUNCTION_ID

Constructor Summary

Constructors

Constructor and Description
ODIN(DistanceFunction<? super O,D> distanceFunction, int k) Constructor.

Method Summary

Methods

Modifier and Type	Method and Description
TypeInformation[]	getInputTypeRestriction() Get the input type restriction used for negotiating the data query.
protected Logging	getLogger() Get the (STATIC) logger for this class.
OutlierResult	run(Database database, Relation<O> relation) Run the ODIN algorithm Tutorial note: the signature of this method depends on the types that we requested in the getInputTypeRestriction() method.

Methods inherited from class de.lmu.ifi.dbs.elki.algorithm.AbstractDistanceBasedAlgorithm

getDistanceFunction

Methods inherited from class de.lmu.ifi.dbs.elki.algorithm.AbstractAlgorithm

makeParameterDistanceFunction, run

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Methods inherited from interface de.lmu.ifi.dbs.elki.algorithm.outlier.OutlierAlgorithm

run

Field Detail

LOG

private static final Logging LOG

Class logger.

k

int k

Number of neighbors for kNN graph.

Constructor Detail

ODIN

public ODIN(DistanceFunction<? super O,D> distanceFunction,
    int k)

Constructor.

Parameters:

distanceFunction - Distance function

k - k parameter

Method Detail

run

public OutlierResult run(Database database,
                Relation<O> relation)

Run the ODIN algorithm Tutorial note: the signature of this method depends on the types that we requested in the getInputTypeRestriction() method. Here we requested a single relation of type O , the data type of our distance function.

Parameters:

database - Database to run on.

relation - Relation to process.

Returns:

ODIN outlier result.

getInputTypeRestriction

public TypeInformation[] getInputTypeRestriction()

Description copied from class: AbstractAlgorithm

Get the input type restriction used for negotiating the data query.

Specified by:

getInputTypeRestriction in interface Algorithm

Specified by:

getInputTypeRestriction in class AbstractAlgorithm<OutlierResult>

Returns:

Type restriction

getLogger

protected Logging getLogger()

Description copied from class: AbstractAlgorithm

Get the (STATIC) logger for this class.

Specified by:

getLogger in class AbstractAlgorithm<OutlierResult>

Returns:

the static logger
