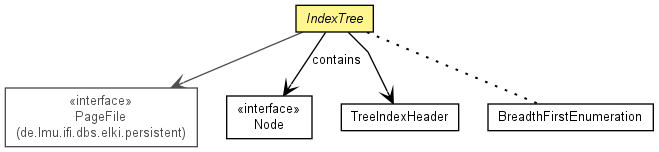

IndexTree (ELKI: Environment for DeveLoping KDD-Applications Supported by Index-Structures)

java.lang.Object
- de.lmu.ifi.dbs.elki.index.tree.IndexTree<N,E>

Type Parameters:
N - the type of Node used in the index
E - the type of Entry used in the index

Direct Known Subclasses:

MetricalIndexTree, SpatialIndexTree
```
public abstract class IndexTree<N extends Node<E>,E extends Entry>
extends Object
```
Abstract super class for all tree based index classes.

Field Summary

Fields
Modifier and Type	Field and Description
`protected int`	`dirCapacity` The capacity of a directory node (= 1 + maximum number of entries in a directory node).
`protected int`	`dirMinimum` The minimum number of entries in a directory node.
`private PageFile<N>`	`file` The file storing the entries of this index.
`protected boolean`	`initialized` True if this index is already initialized.
`protected int`	`leafCapacity` The capacity of a leaf node (= 1 + maximum number of entries in a leaf node).
`protected int`	`leafMinimum` The minimum number of entries in a leaf node.
`private E`	`rootEntry` The entry representing the root node.

Constructor Summary

Constructors
Constructor and Description

IndexTree(PageFile<N> pagefile)
Constructor.

Constructors
Constructor and Description
`IndexTree(PageFile<N> pagefile)` Constructor.

Method Summary

Methods
Modifier and Type	Method and Description
`protected abstract void`	`createEmptyRoot(E exampleLeaf)` Creates an empty root node and writes it to file.
`protected TreeIndexHeader`	`createHeader()` Creates a header for this index structure which is an instance of `TreeIndexHeader`.
`protected abstract N`	`createNewDirectoryNode()` Creates a new directory node with the specified capacity.
`protected abstract N`	`createNewLeafNode()` Creates a new leaf node with the specified capacity.
`protected abstract E`	`createRootEntry()` Creates an entry representing the root node.
`protected void`	`deleteNode(N node)` Delete a node from the backing storage.
`protected PageFile<N>`	`getFile()` Deprecated.
`protected abstract Logging`	`getLogger()` Get the (STATIC) logger for this class.
`N`	`getNode(E entry)` Returns the node that is represented by the specified entry.
`N`	`getNode(int nodeID)` Returns the node with the specified id.
`protected int`	`getPageID(Entry entry)` Convert a directory entry to its page id.
`protected int`	`getPageSize()` Get the page size of the backing storage.
`N`	`getRoot()` Reads the root node of this index from the file.
`E`	`getRootEntry()` Returns the entry representing the root if this index.
`int`	`getRootID()` Page ID of the root entry.
`IndexTreePath<E>`	`getRootPath()` Returns the path to the root of this tree.
`void`	`initialize()` Initialize the tree if the page file already existed.
`protected void`	`initialize(E exampleLeaf)` Initializes the index.
`protected abstract void`	`initializeCapacities(E exampleLeaf)` Determines the maximum and minimum number of entries in a node.
`void`	`initializeFromFile(TreeIndexHeader header, PageFile<N> file)` Initializes this index from an existing persistent file.
`protected boolean`	`isRoot(N page)` Test if a given ID is the root.
`void`	`logStatistics()` Log some statistics, if enabled.
`protected void`	`postDelete(E entry)` Performs necessary operations after deleting the specified entry.
`protected void`	`preInsert(E entry)` Performs necessary operations before inserting the specified entry.
`protected void`	`writeNode(N node)` Write a node to the backing storage.

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

- Field Detail
  - file
```
private final PageFile<N extends Node<E>> file
```
    The file storing the entries of this index.
  - initialized
```
protected boolean initialized
```
    True if this index is already initialized.
  - dirCapacity
```
protected int dirCapacity
```
    The capacity of a directory node (= 1 + maximum number of entries in a directory node).
  - leafCapacity
```
protected int leafCapacity
```
    The capacity of a leaf node (= 1 + maximum number of entries in a leaf node).
  - dirMinimum
```
protected int dirMinimum
```
    The minimum number of entries in a directory node.
  - leafMinimum
```
protected int leafMinimum
```
    The minimum number of entries in a leaf node.
  - rootEntry
```
private E extends Entry rootEntry
```
    The entry representing the root node.
- Constructor Detail
  - IndexTree
```
public IndexTree(PageFile<N> pagefile)
```
    Constructor.

    Parameters:
    pagefile - page file to use
- Method Detail
  - initialize
```
public void initialize()
```
    Initialize the tree if the page file already existed.
  - getLogger
```
protected abstract Logging getLogger()
```
    Get the (STATIC) logger for this class.

    Returns:
    the static logger
  - getRootEntry
```
public final E getRootEntry()
```
    Returns the entry representing the root if this index.

    Returns:
    the entry representing the root if this index
  - getRootID
```
public final int getRootID()
```
    Page ID of the root entry.

    Returns:
    page id
  - getRoot
```
public N getRoot()
```
    Reads the root node of this index from the file.

    Returns:
    the root node of this index
  - isRoot
```
protected boolean isRoot(N page)
```
    Test if a given ID is the root.

    Parameters:
    page - Page to test

    Returns:
    Whether the page ID is the root
  - getPageID
```
protected int getPageID(Entry entry)
```
    Convert a directory entry to its page id.

    Parameters:
    entry - Entry

    Returns:
    Page ID
  - getNode
```
public N getNode(int nodeID)
```
    Returns the node with the specified id.

    Parameters:
    nodeID - the page id of the node to be returned

    Returns:
    the node with the specified id
  - getNode
```
public final N getNode(E entry)
```
    Returns the node that is represented by the specified entry.

    Parameters:
    entry - the entry representing the node to be returned

    Returns:
    the node that is represented by the specified entry
  - writeNode
```
protected void writeNode(N node)
```
    Write a node to the backing storage.

    Parameters:
    node - Node to write
  - deleteNode
```
protected void deleteNode(N node)
```
    Delete a node from the backing storage.

    Parameters:
    node - Node to delete
  - createHeader
```
protected TreeIndexHeader createHeader()
```
    Creates a header for this index structure which is an instance of TreeIndexHeader. Subclasses may need to overwrite this method if they need a more specialized header.

    Returns:
    a new header for this index structure
  - initializeFromFile
```
public void initializeFromFile(TreeIndexHeader header,
                      PageFile<N> file)
```
    Initializes this index from an existing persistent file.

    Parameters:
    header - File header
    file - Page file
  - initialize
```
protected final void initialize(E exampleLeaf)
```
    Initializes the index.

    Parameters:
    exampleLeaf - an object that will be stored in the index
  - getRootPath
```
public final IndexTreePath<E> getRootPath()
```
    Returns the path to the root of this tree.

    Returns:
    the path to the root of this tree
  - initializeCapacities
```
protected abstract void initializeCapacities(E exampleLeaf)
```
    Determines the maximum and minimum number of entries in a node.

    Parameters:
    exampleLeaf - an object that will be stored in the index
  - createEmptyRoot
```
protected abstract void createEmptyRoot(E exampleLeaf)
```
    Creates an empty root node and writes it to file.

    Parameters:
    exampleLeaf - an object that will be stored in the index
  - createRootEntry
```
protected abstract E createRootEntry()
```
    Creates an entry representing the root node.

    Returns:
    an entry representing the root node
  - createNewLeafNode
```
protected abstract N createNewLeafNode()
```
    Creates a new leaf node with the specified capacity.

    Returns:
    a new leaf node
  - createNewDirectoryNode
```
protected abstract N createNewDirectoryNode()
```
    Creates a new directory node with the specified capacity.

    Returns:
    a new directory node
  - preInsert
```
protected void preInsert(E entry)
```
    Performs necessary operations before inserting the specified entry.

    Parameters:
    entry - the entry to be inserted
  - postDelete
```
protected void postDelete(E entry)
```
    Performs necessary operations after deleting the specified entry.

    Parameters:
    entry - the entry that was removed
  - logStatistics
```
public void logStatistics()
```
    Log some statistics, if enabled.
  - getPageSize
```
protected int getPageSize()
```
    Get the page size of the backing storage.

    Returns:
    Page size
  - getFile
```
@Deprecated
protected PageFile<N> getFile()
```
    Deprecated.

    Directly access the backing page file.

    Returns:
    the page file
