de.lmu.ifi.dbs.elki.algorithm.outlier

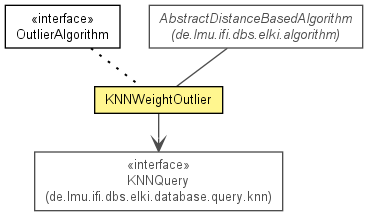

Class KNNWeightOutlier<O,D extends NumberDistance<D,?>>

java.lang.Object

de.lmu.ifi.dbs.elki.algorithm.AbstractAlgorithm<R>

de.lmu.ifi.dbs.elki.algorithm.AbstractDistanceBasedAlgorithm<O,D,OutlierResult>

de.lmu.ifi.dbs.elki.algorithm.outlier.KNNWeightOutlier<O,D>

Type Parameters:

O - the type of DatabaseObjects handled by this Algorithm

D - the type of Distance used by this Algorithm

All Implemented Interfaces:

Algorithm, OutlierAlgorithm, Parameterizable

@Title(value="KNNWeight outlier detection")
@Description(value="Outlier Detection based on the distances of an object to its k nearest neighbors.")
@Reference(authors="F. Angiulli, C. Pizzuti",
           title="Fast Outlier Detection in High Dimensional Spaces",
           booktitle="Proc. European Conference on Principles of Knowledge Discovery and Data Mining (PKDD\'02), Helsinki, Finland, 2002",
           url="http://dx.doi.org/10.1007/3-540-45681-3_2")
public class KNNWeightOutlier<O,D extends NumberDistance<D,?>>
extends AbstractDistanceBasedAlgorithm<O,D,OutlierResult>
implements OutlierAlgorithm

Outlier Detection based on the accumulated distances of a point to its k nearest neighbors. Based on: F. Angiulli, C. Pizzuti: Fast Outlier Detection in High Dimensional Spaces. In: Proc. European Conference on Principles of Knowledge Discovery and Data Mining (PKDD'02), Helsinki, Finland, 2002.

Nested Class Summary

Nested Classes

Modifier and Type	Class and Description
static class	KNNWeightOutlier.Parameterizer<O,D extends NumberDistance<D,?>> Parameterization class.

Field Summary

Fields

Modifier and Type	Field and Description
private int	k Holds the value of K_ID.
static OptionID	K_ID Parameter to specify the k nearest neighbor
static OptionID	KNNQUERY_ID The kNN query used.
private static Logging	LOG The logger for this class.

Fields inherited from class de.lmu.ifi.dbs.elki.algorithm.AbstractDistanceBasedAlgorithm

DISTANCE_FUNCTION_ID

Constructor Summary

Constructors

Constructor and Description
KNNWeightOutlier(DistanceFunction<? super O,D> distanceFunction, int k) Constructor with parameters.

Method Summary

Methods

Modifier and Type	Method and Description
TypeInformation[]	getInputTypeRestriction() Get the input type restriction used for negotiating the data query.
protected Logging	getLogger() Get the (STATIC) logger for this class.
OutlierResult	run(Database database, Relation<O> relation) Runs the algorithm in the timed evaluation part.

Methods inherited from class de.lmu.ifi.dbs.elki.algorithm.AbstractDistanceBasedAlgorithm

getDistanceFunction

Methods inherited from class de.lmu.ifi.dbs.elki.algorithm.AbstractAlgorithm

makeParameterDistanceFunction, run

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Methods inherited from interface de.lmu.ifi.dbs.elki.algorithm.outlier.OutlierAlgorithm

run

Field Detail

LOG

private static final Logging LOG

The logger for this class.

K_ID

public static final OptionID K_ID

Parameter to specify the k nearest neighbor

KNNQUERY_ID

public static final OptionID KNNQUERY_ID

The kNN query used.

k

private int k

Holds the value of K_ID.

Constructor Detail

KNNWeightOutlier

public KNNWeightOutlier(DistanceFunction<? super O,D> distanceFunction,
                int k)

Constructor with parameters.

Parameters:

distanceFunction - Distance function

k - k Parameter

Method Detail

run

public OutlierResult run(Database database,
                Relation<O> relation)

Runs the algorithm in the timed evaluation part.

getInputTypeRestriction

public TypeInformation[] getInputTypeRestriction()

Description copied from class: AbstractAlgorithm

Get the input type restriction used for negotiating the data query.

Specified by:

getInputTypeRestriction in interface Algorithm

Specified by:

getInputTypeRestriction in class AbstractAlgorithm<OutlierResult>

Returns:

Type restriction

getLogger

protected Logging getLogger()

Description copied from class: AbstractAlgorithm

Get the (STATIC) logger for this class.

Specified by:

getLogger in class AbstractAlgorithm<OutlierResult>

Returns:

the static logger
