de.lmu.ifi.dbs.elki.visualization.visualizers.vis2d

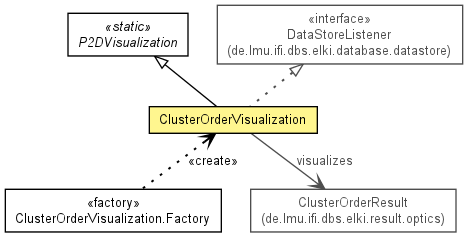

Class ClusterOrderVisualization<NV extends NumberVector<NV,?>>

java.lang.Object
  extended by de.lmu.ifi.dbs.elki.visualization.visualizers.AbstractVisualization
      extended by de.lmu.ifi.dbs.elki.visualization.visualizers.vis2d.P2DVisualization<NV>
          extended by de.lmu.ifi.dbs.elki.visualization.visualizers.vis2d.ClusterOrderVisualization<NV>
All Implemented Interfaces:
DataStoreListener, ResultListener, ContextChangeListener, Visualization, EventListener

public class ClusterOrderVisualization<NV extends NumberVector<NV,?>>
extends P2DVisualization<NV>
implements DataStoreListener

Cluster order visualizer.


Nested Class Summary
static class ClusterOrderVisualization.Factory<NV extends NumberVector<NV,?>>
          Visualize an OPTICS cluster order by drawing connection lines.

Field Summary
private static String CSSNAME
          CSS class name
private static String NAME
          A short name characterizing this Visualizer.
protected  ClusterOrderResult<?> result
          The result we visualize

Fields inherited from class de.lmu.ifi.dbs.elki.visualization.visualizers.vis2d.P2DVisualization
proj, rel

Fields inherited from class de.lmu.ifi.dbs.elki.visualization.visualizers.AbstractVisualization
context, layer, pendingRedraw, svgp, task

Constructor Summary
ClusterOrderVisualization(VisualizationTask task)


Method Summary
 void contentChanged(DataStoreEvent e)
          Invoked after objects of the datastore have been updated, inserted or removed in some way.
 void destroy()
          Destroy the visualization.
 void redraw()
          Perform a full redraw.

Methods inherited from class de.lmu.ifi.dbs.elki.visualization.visualizers.vis2d.P2DVisualization
setupCanvas

Methods inherited from class de.lmu.ifi.dbs.elki.visualization.visualizers.AbstractVisualization
contextChanged, getHeight, getLayer, getWidth, incrementalRedraw, resultAdded, resultChanged, resultRemoved, synchronizedRedraw, testRedraw

Methods inherited from class java.lang.Object
clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait


Field Detail

NAME

private static final String NAME
A short name characterizing this Visualizer.

See Also:
Constant Field Values

CSSNAME

private static final String CSSNAME
CSS class name

See Also:
Constant Field Values

result

protected ClusterOrderResult<?> result
The result we visualize

Constructor Detail

ClusterOrderVisualization

public ClusterOrderVisualization(VisualizationTask task)
Method Detail

destroy

public void destroy()
Description copied from interface: Visualization
Destroy the visualization. Called after the elements have been removed from the document. Implementations should remove their listeners etc.

Specified by:
destroy in interface Visualization
Overrides:
destroy in class AbstractVisualization

redraw

public void redraw()
Description copied from class: AbstractVisualization
Perform a full redraw.

Specified by:
redraw in class AbstractVisualization

contentChanged

public void contentChanged(DataStoreEvent e)
Description copied from interface: DataStoreListener
Invoked after objects of the datastore have been updated, inserted or removed in some way.

Specified by:
contentChanged in interface DataStoreListener
Parameters:
e - the update event

Release 0.4.0 (2011-09-20_1324)
