de.lmu.ifi.dbs.elki.gui.multistep.panels
Class EvaluationTabPanel

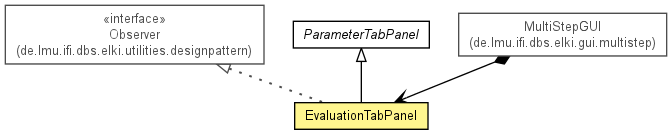

java.lang.Object
  java.awt.Component
      java.awt.Container
          javax.swing.JComponent
              javax.swing.JPanel
                  de.lmu.ifi.dbs.elki.gui.multistep.panels.ParameterTabPanel
                      de.lmu.ifi.dbs.elki.gui.multistep.panels.EvaluationTabPanel

All Implemented Interfaces:

Observable<ParameterTabPanel>, Observer<Object>, ImageObserver, MenuContainer, Serializable, EventListener, Accessible, ChangeListener

public class EvaluationTabPanel
extends ParameterTabPanel
implements Observer<Object>

Panel to handle result evaluation

See Also:

Serialized Form

Nested Class Summary

Nested classes/interfaces inherited from class javax.swing.JPanel

JPanel.AccessibleJPanel

Nested classes/interfaces inherited from class javax.swing.JComponent

JComponent.AccessibleJComponent

Nested classes/interfaces inherited from class java.awt.Container

Container.AccessibleAWTContainer

Nested classes/interfaces inherited from class java.awt.Component

Component.AccessibleAWTComponent, Component.BaselineResizeBehavior, Component.BltBufferStrategy, Component.FlipBufferStrategy

Field Summary

private AlgorithmTabPanel	algs Algorithm step to run on.
private WeakReference<?>	basedOnResult Result we ran last onn
private EvaluationStep	evals The data input configured
private InputTabPanel	input Input step to run on.
private static long	serialVersionUID Serial version.

Fields inherited from class de.lmu.ifi.dbs.elki.gui.multistep.panels.ParameterTabPanel

logger, observers, STATUS_COMPLETE, STATUS_CONFIGURED, STATUS_FAILED, STATUS_READY, STATUS_UNCONFIGURED

Fields inherited from class javax.swing.JComponent

accessibleContext, listenerList, TOOL_TIP_TEXT_KEY, ui, UNDEFINED_CONDITION, WHEN_ANCESTOR_OF_FOCUSED_COMPONENT, WHEN_FOCUSED, WHEN_IN_FOCUSED_WINDOW

Fields inherited from class java.awt.Component

BOTTOM_ALIGNMENT, CENTER_ALIGNMENT, LEFT_ALIGNMENT, RIGHT_ALIGNMENT, TOP_ALIGNMENT

Fields inherited from interface java.awt.image.ImageObserver

ABORT, ALLBITS, ERROR, FRAMEBITS, HEIGHT, PROPERTIES, SOMEBITS, WIDTH

Constructor Summary

EvaluationTabPanel(InputTabPanel input, AlgorithmTabPanel algs)
Constructor.

Method Summary

private void	checkDependencies() Test if the dependencies are still valid.
protected void	configureStep(Parameterization config) Configure this step with the given parameters.
protected void	executeStep() Execute the configured step.
EvaluationStep	getEvaluationStep() Get the evaluation step.
protected String	getStatus() Get the current status of this step.
void	update(Object o) This method is called when an observed object was updated.

Methods inherited from class de.lmu.ifi.dbs.elki.gui.multistep.panels.ParameterTabPanel

addObserver, appendParameters, canRun, execute, isComplete, removeObserver, reportErrors, setParameters, stateChanged, updateParameterTable, updateStatus

Methods inherited from class javax.swing.JPanel

getAccessibleContext, getUI, getUIClassID, paramString, setUI, updateUI

Methods inherited from class javax.swing.JComponent

addAncestorListener, addNotify, addVetoableChangeListener, computeVisibleRect, contains, createToolTip, disable, enable, firePropertyChange, firePropertyChange, firePropertyChange, fireVetoableChange, getActionForKeyStroke, getActionMap, getAlignmentX, getAlignmentY, getAncestorListeners, getAutoscrolls, getBaseline, getBaselineResizeBehavior, getBorder, getBounds, getClientProperty, getComponentGraphics, getComponentPopupMenu, getConditionForKeyStroke, getDebugGraphicsOptions, getDefaultLocale, getFontMetrics, getGraphics, getHeight, getInheritsPopupMenu, getInputMap, getInputMap, getInputVerifier, getInsets, getInsets, getListeners, getLocation, getMaximumSize, getMinimumSize, getNextFocusableComponent, getPopupLocation, getPreferredSize, getRegisteredKeyStrokes, getRootPane, getSize, getToolTipLocation, getToolTipText, getToolTipText, getTopLevelAncestor, getTransferHandler, getVerifyInputWhenFocusTarget, getVetoableChangeListeners, getVisibleRect, getWidth, getX, getY, grabFocus, isDoubleBuffered, isLightweightComponent, isManagingFocus, isOpaque, isOptimizedDrawingEnabled, isPaintingForPrint, isPaintingTile, isRequestFocusEnabled, isValidateRoot, paint, paintBorder, paintChildren, paintComponent, paintImmediately, paintImmediately, print, printAll, printBorder, printChildren, printComponent, processComponentKeyEvent, processKeyBinding, processKeyEvent, processMouseEvent, processMouseMotionEvent, putClientProperty, registerKeyboardAction, registerKeyboardAction, removeAncestorListener, removeNotify, removeVetoableChangeListener, repaint, repaint, requestDefaultFocus, requestFocus, requestFocus, requestFocusInWindow, requestFocusInWindow, resetKeyboardActions, reshape, revalidate, scrollRectToVisible, setActionMap, setAlignmentX, setAlignmentY, setAutoscrolls, setBackground, setBorder, setComponentPopupMenu, setDebugGraphicsOptions, setDefaultLocale, setDoubleBuffered, setEnabled, setFocusTraversalKeys, setFont, setForeground, setInheritsPopupMenu, setInputMap, setInputVerifier, setMaximumSize, setMinimumSize, setNextFocusableComponent, setOpaque, setPreferredSize, setRequestFocusEnabled, setToolTipText, setTransferHandler, setUI, setVerifyInputWhenFocusTarget, setVisible, unregisterKeyboardAction, update

Methods inherited from class java.awt.Container

add, add, add, add, add, addContainerListener, addImpl, addPropertyChangeListener, addPropertyChangeListener, applyComponentOrientation, areFocusTraversalKeysSet, countComponents, deliverEvent, doLayout, findComponentAt, findComponentAt, getComponent, getComponentAt, getComponentAt, getComponentCount, getComponents, getComponentZOrder, getContainerListeners, getFocusTraversalKeys, getFocusTraversalPolicy, getLayout, getMousePosition, insets, invalidate, isAncestorOf, isFocusCycleRoot, isFocusCycleRoot, isFocusTraversalPolicyProvider, isFocusTraversalPolicySet, layout, list, list, locate, minimumSize, paintComponents, preferredSize, printComponents, processContainerEvent, processEvent, remove, remove, removeAll, removeContainerListener, setComponentZOrder, setFocusCycleRoot, setFocusTraversalPolicy, setFocusTraversalPolicyProvider, setLayout, transferFocusBackward, transferFocusDownCycle, validate, validateTree

Methods inherited from class java.awt.Component

action, add, addComponentListener, addFocusListener, addHierarchyBoundsListener, addHierarchyListener, addInputMethodListener, addKeyListener, addMouseListener, addMouseMotionListener, addMouseWheelListener, bounds, checkImage, checkImage, coalesceEvents, contains, createImage, createImage, createVolatileImage, createVolatileImage, disableEvents, dispatchEvent, enable, enableEvents, enableInputMethods, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, firePropertyChange, getBackground, getBounds, getColorModel, getComponentListeners, getComponentOrientation, getCursor, getDropTarget, getFocusCycleRootAncestor, getFocusListeners, getFocusTraversalKeysEnabled, getFont, getForeground, getGraphicsConfiguration, getHierarchyBoundsListeners, getHierarchyListeners, getIgnoreRepaint, getInputContext, getInputMethodListeners, getInputMethodRequests, getKeyListeners, getLocale, getLocation, getLocationOnScreen, getMouseListeners, getMouseMotionListeners, getMousePosition, getMouseWheelListeners, getName, getParent, getPeer, getPropertyChangeListeners, getPropertyChangeListeners, getSize, getToolkit, getTreeLock, gotFocus, handleEvent, hasFocus, hide, imageUpdate, inside, isBackgroundSet, isCursorSet, isDisplayable, isEnabled, isFocusable, isFocusOwner, isFocusTraversable, isFontSet, isForegroundSet, isLightweight, isMaximumSizeSet, isMinimumSizeSet, isPreferredSizeSet, isShowing, isValid, isVisible, keyDown, keyUp, list, list, list, location, lostFocus, mouseDown, mouseDrag, mouseEnter, mouseExit, mouseMove, mouseUp, move, nextFocus, paintAll, postEvent, prepareImage, prepareImage, processComponentEvent, processFocusEvent, processHierarchyBoundsEvent, processHierarchyEvent, processInputMethodEvent, processMouseWheelEvent, remove, removeComponentListener, removeFocusListener, removeHierarchyBoundsListener, removeHierarchyListener, removeInputMethodListener, removeKeyListener, removeMouseListener, removeMouseMotionListener, removeMouseWheelListener, removePropertyChangeListener, removePropertyChangeListener, repaint, repaint, repaint, resize, resize, setBounds, setBounds, setComponentOrientation, setCursor, setDropTarget, setFocusable, setFocusTraversalKeysEnabled, setIgnoreRepaint, setLocale, setLocation, setLocation, setName, setSize, setSize, show, show, size, toString, transferFocus, transferFocusUpCycle

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, wait, wait, wait

Field Detail

serialVersionUID

private static final long serialVersionUID

Serial version.

See Also:

Constant Field Values

evals

private EvaluationStep evals

The data input configured

basedOnResult

private WeakReference<?> basedOnResult

Result we ran last onn

input

private final InputTabPanel input

Input step to run on.

algs

private final AlgorithmTabPanel algs

Algorithm step to run on.

Constructor Detail

EvaluationTabPanel

public EvaluationTabPanel(InputTabPanel input,
                          AlgorithmTabPanel algs)

Constructor. We depend on an input panel.

Parameters:

input - Input panel to depend on.

Method Detail

configureStep

protected void configureStep(Parameterization config)

Description copied from class: ParameterTabPanel

Configure this step with the given parameters.

Specified by:

configureStep in class ParameterTabPanel

Parameters:

config - Configuration to use.

executeStep

protected void executeStep()

Description copied from class: ParameterTabPanel

Execute the configured step.

Specified by:

executeStep in class ParameterTabPanel

getEvaluationStep

public EvaluationStep getEvaluationStep()

Get the evaluation step.

Returns:

Evaluation step

getStatus

protected String getStatus()

Description copied from class: ParameterTabPanel

Get the current status of this step.

Specified by:

getStatus in class ParameterTabPanel

Returns:

current status

update

public void update(Object o)

Description copied from interface: Observer

This method is called when an observed object was updated.

Specified by:

update in interface Observer<Object>

Parameters:

o - Observable

checkDependencies

private void checkDependencies()

Test if the dependencies are still valid.
