Supplementary Material for
On the Evaluation of Unsupervised Outlier Detection: Measures, Datasets, and an Empirical Study
by G. O. Campos, A. Zimek, J. Sander, R. J. G. B. Campello, B. Micenková, E. Schubert, I. Assent and M. E. Houle
Data Mining and Knowledge Discovery 30(4): 891-927, 2016, DOI: 10.1007/s10618-015-0444-8

Pima (10% of outliers version#01)

The data set contains medical data on diabetes. Patients suffering from diabetes were considered outliers.

Download all data set variants used (694.8 kB). You can also access the original data. (pima-indians-diabetes.data)

Normalized, without duplicates

This version contains 8 attributes, 555 objects, 55 outliers (9.91%)

Download raw algorithm results (4.9 MB) Download raw algorithm evaluation table (53.8 kB)

Best Parameters

The following table contains the best (overall and per-method) results for each method and evaluation measure (when the same score was achieved twice, only the smallest k is given).
The Maximum F1-Measure is complimentary in addition to the measures in the original publication.

Algorithm k P@n Adj. P@n AP Adj. AP Max-F1 Adj. MF1 ROC AUC
KNN 1 0.16364 0.07164 0.22478 0.13950 0.36471 0.29482 0.77233
KNN 2 0.20000 0.11200 0.22923 0.14445 0.34826 0.27657 0.78289
KNN 22 0.21818 0.13218 0.20534 0.11793 0.33692 0.26398 0.76445
KNNW 1 0.27273 0.19273 0.21793 0.13190 0.33480 0.26163 0.76096
KNNW 3 0.21818 0.13218 0.23023 0.14555 0.35789 0.28726 0.78273
KNNW 14 0.16364 0.07164 0.21089 0.12409 0.36441 0.29449 0.77342
LOF 4 0.21818 0.13218 0.17063 0.07940 0.25373 0.17164 0.63767
LOF 86 0.10909 0.01109 0.17879 0.08845 0.34028 0.26771 0.74458
LOF 97 0.10909 0.01109 0.18193 0.09194 0.32491 0.25065 0.74527
LOF 98 0.10909 0.01109 0.18153 0.09150 0.32258 0.24806 0.74535
SimplifiedLOF 4 0.23636 0.15236 0.18152 0.09149 0.28358 0.20478 0.64564
SimplifiedLOF 100 0.10909 0.01109 0.16651 0.07483 0.31250 0.23687 0.70182
LoOP 4 0.21818 0.13218 0.17951 0.08926 0.28788 0.20955 0.64669
LoOP 97 0.10909 0.01109 0.16271 0.07061 0.30000 0.22300 0.69055
LoOP 98 0.10909 0.01109 0.16303 0.07097 0.30705 0.23083 0.68913
LDOF 4 0.25455 0.17255 0.19953 0.11147 0.29213 0.21427 0.64215
LDOF 6 0.25455 0.17255 0.17398 0.08312 0.27984 0.20062 0.67473
ODIN 20 0.19251 0.10369 0.15770 0.06504 0.24432 0.16119 0.64273
ODIN 80 0.09091 -0.00909 0.16842 0.07695 0.28682 0.20837 0.69749
ODIN 99 0.10545 0.00705 0.16572 0.07395 0.30088 0.22398 0.70193
ODIN 100 0.10606 0.00773 0.16606 0.07433 0.29956 0.22251 0.70360
FastABOD 4 0.29091 0.21291 0.24822 0.16553 0.36681 0.29716 0.79535
FastABOD 18 0.25455 0.17255 0.26549 0.18469 0.43350 0.37118 0.81342
FastABOD 70 0.25455 0.17255 0.27233 0.19229 0.41837 0.35439 0.81865
FastABOD 96 0.25455 0.17255 0.27088 0.19068 0.41885 0.35492 0.81996
KDEOS 13 0.18182 0.09182 0.14512 0.05108 0.22630 0.14119 0.61422
KDEOS 14 0.18182 0.09182 0.15092 0.05752 0.21449 0.12809 0.60160
KDEOS 98 0.09091 -0.00909 0.12508 0.02884 0.24667 0.16380 0.62353
KDEOS 100 0.10909 0.01109 0.12597 0.02983 0.24585 0.16289 0.62538
LDF 2 0.23636 0.15236 0.17026 0.07899 0.25714 0.17543 0.59435
LDF 66 0.12727 0.03127 0.19121 0.10224 0.35200 0.28072 0.75993
LDF 76 0.12727 0.03127 0.19290 0.10412 0.33962 0.26698 0.76167
LDF 98 0.16364 0.07164 0.19590 0.10744 0.33213 0.25866 0.75818
INFLO 2 0.21818 0.13218 0.16594 0.07419 0.25143 0.16909 0.62516
INFLO 99 0.09091 -0.00909 0.17176 0.08065 0.30222 0.22547 0.71673
INFLO 100 0.09091 -0.00909 0.17138 0.08023 0.30522 0.22880 0.71575
COF 92 0.29091 0.21291 0.24519 0.16216 0.39490 0.32834 0.80444
COF 100 0.27273 0.19273 0.25958 0.17814 0.38235 0.31441 0.81167

Plots

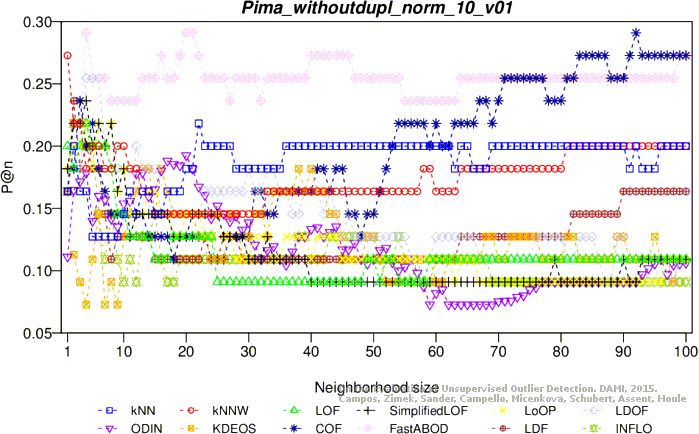

Precision at n
Adjusted precision at n

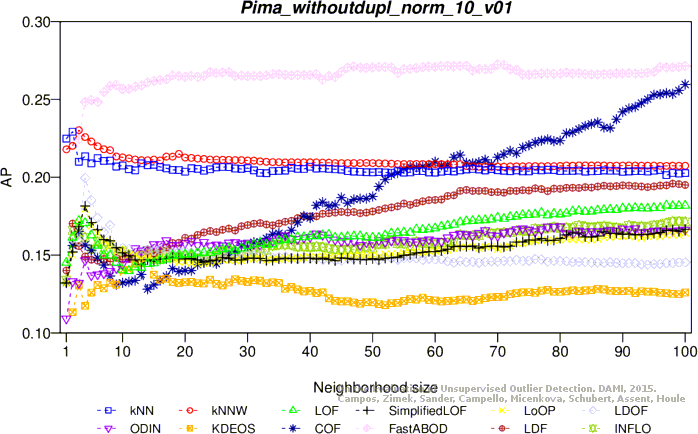

Average precision

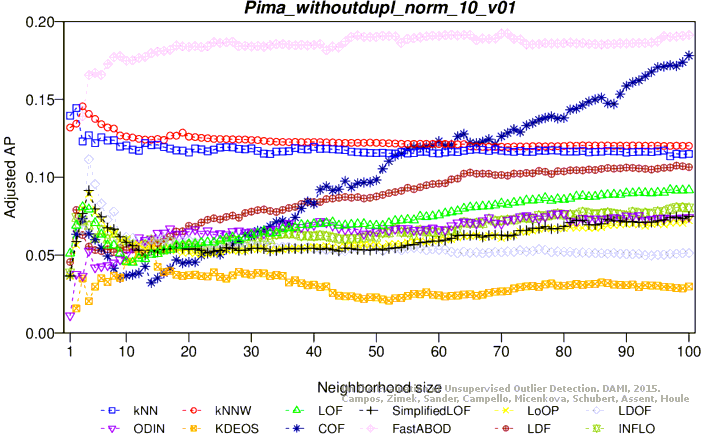

Adjusted average precision

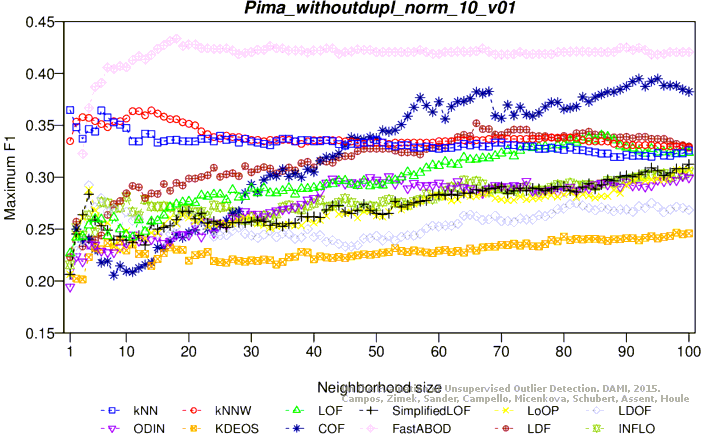

Maximum F1 score

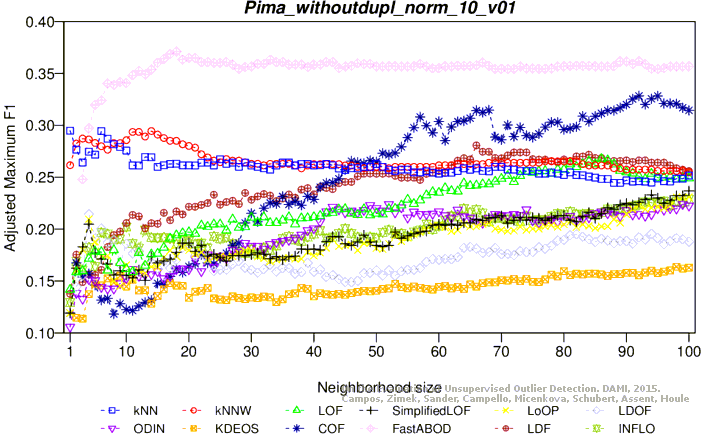

Adjusted maximum F1 score

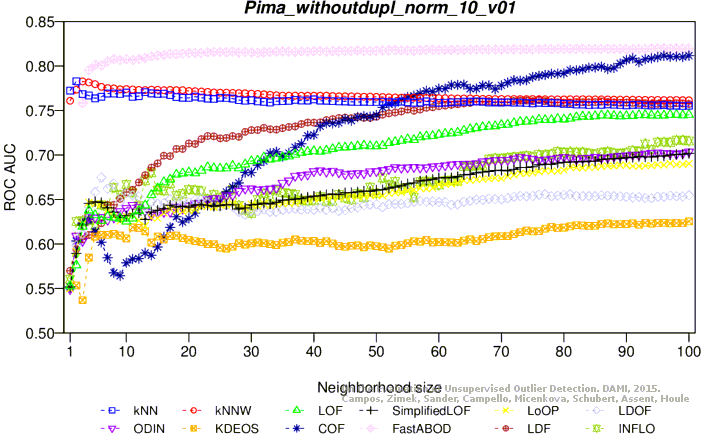

ROC AUC

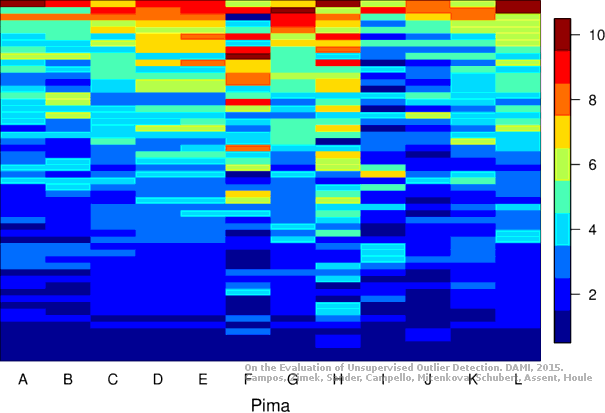

Diversity
A: KNN, B: KNNW, C: LOF, D: SimplifiedLOF, E: LoOP, F: LDOF
G: ODIN, H: KDEOS, I: COF, J: FastABOD, K: LDF, L: INFLO

Not normalized, without duplicates

This version contains 8 attributes, 555 objects, 55 outliers (9.91%)

Download raw algorithm results (4.8 MB) Download raw algorithm evaluation table (53.8 kB)

Best Parameters

The following table contains the best (overall and per-method) results for each method and evaluation measure (when the same score was achieved twice, only the smallest k is given).
The Maximum F1-Measure is complimentary in addition to the measures in the original publication.

Algorithm k P@n Adj. P@n AP Adj. AP Max-F1 Adj. MF1 ROC AUC
KNN 8 0.30909 0.23309 0.21680 0.13065 0.36709 0.29747 0.70756
KNN 9 0.30909 0.23309 0.21652 0.13034 0.36025 0.28988 0.70967
KNN 12 0.30909 0.23309 0.22097 0.13527 0.35802 0.28741 0.70733
KNNW 4 0.25455 0.17255 0.20138 0.11354 0.33533 0.26222 0.70698
KNNW 14 0.27273 0.19273 0.21289 0.12631 0.35955 0.28910 0.70680
KNNW 20 0.30909 0.23309 0.21645 0.13025 0.35366 0.28256 0.70662
LOF 74 0.20000 0.11200 0.18587 0.09631 0.33684 0.26389 0.69600
LOF 78 0.18182 0.09182 0.18775 0.09840 0.34043 0.26787 0.69735
LOF 84 0.18182 0.09182 0.18894 0.09972 0.33149 0.25796 0.69927
LOF 95 0.20000 0.11200 0.18846 0.09919 0.33136 0.25781 0.70156
SimplifiedLOF 98 0.20000 0.11200 0.17478 0.08400 0.30000 0.22300 0.66215
SimplifiedLOF 100 0.20000 0.11200 0.17479 0.08402 0.30337 0.22674 0.66276
LoOP 32 0.18182 0.09182 0.13795 0.04312 0.22581 0.14065 0.60096
LoOP 81 0.16364 0.07164 0.16143 0.06919 0.28571 0.20714 0.65425
LoOP 99 0.16364 0.07164 0.16504 0.07320 0.29586 0.21840 0.65067
LoOP 100 0.16364 0.07164 0.16612 0.07439 0.29586 0.21840 0.65218
LDOF 30 0.18182 0.09182 0.13635 0.04135 0.23041 0.14576 0.59204
LDOF 98 0.16364 0.07164 0.16764 0.07608 0.28758 0.20922 0.65305
LDOF 100 0.16364 0.07164 0.16780 0.07625 0.28571 0.20714 0.65287
ODIN 38 0.16364 0.07164 0.13341 0.03809 0.23529 0.15118 0.60515
ODIN 84 0.12727 0.03127 0.16271 0.07061 0.28054 0.20140 0.62862
ODIN 85 0.12727 0.03127 0.16294 0.07087 0.27149 0.19136 0.62765
FastABOD 4 0.29091 0.21291 0.21387 0.12740 0.32836 0.25448 0.72804
FastABOD 97 0.27273 0.19273 0.23387 0.14959 0.38857 0.32131 0.73360
FastABOD 98 0.27273 0.19273 0.23373 0.14944 0.39080 0.32379 0.73353
FastABOD 100 0.27273 0.19273 0.23363 0.14932 0.39080 0.32379 0.73371
KDEOS 3 0.14545 0.05145 0.12967 0.03394 0.22826 0.14337 0.55855
KDEOS 79 0.09091 -0.00909 0.12073 0.02401 0.24149 0.15805 0.60058
KDEOS 99 0.07273 -0.02927 0.12317 0.02672 0.23729 0.15339 0.60709
LDF 63 0.20000 0.11200 0.19429 0.10567 0.34682 0.27497 0.71062
LDF 70 0.21818 0.13218 0.19465 0.10606 0.33333 0.26000 0.71175
LDF 92 0.18182 0.09182 0.19977 0.11175 0.33333 0.26000 0.71949
LDF 100 0.21818 0.13218 0.20076 0.11284 0.32692 0.25288 0.71804
INFLO 21 0.18182 0.09182 0.13654 0.04156 0.25806 0.17645 0.58744
INFLO 69 0.16364 0.07164 0.17031 0.07905 0.31818 0.24318 0.66315
INFLO 71 0.16364 0.07164 0.17092 0.07972 0.31638 0.24119 0.67567
INFLO 90 0.18182 0.09182 0.17474 0.08396 0.31502 0.23967 0.66629
COF 19 0.21818 0.13218 0.14304 0.04878 0.23385 0.14957 0.61909
COF 51 0.16364 0.07164 0.18513 0.09549 0.27509 0.19535 0.68987
COF 76 0.20000 0.11200 0.17456 0.08376 0.30709 0.23087 0.69775
COF 100 0.18182 0.09182 0.17768 0.08723 0.30189 0.22509 0.69965

Plots

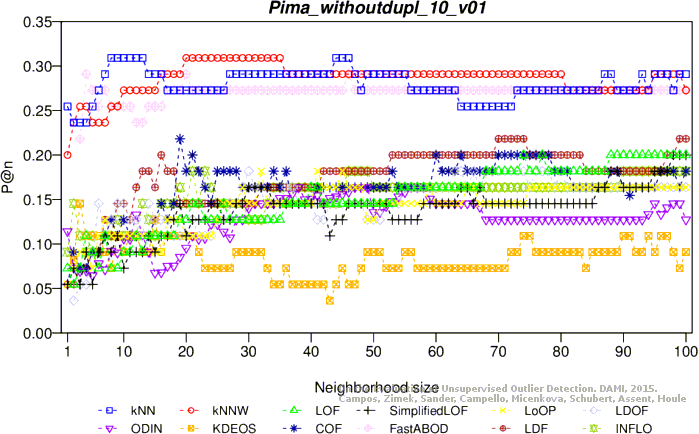

Precision at n

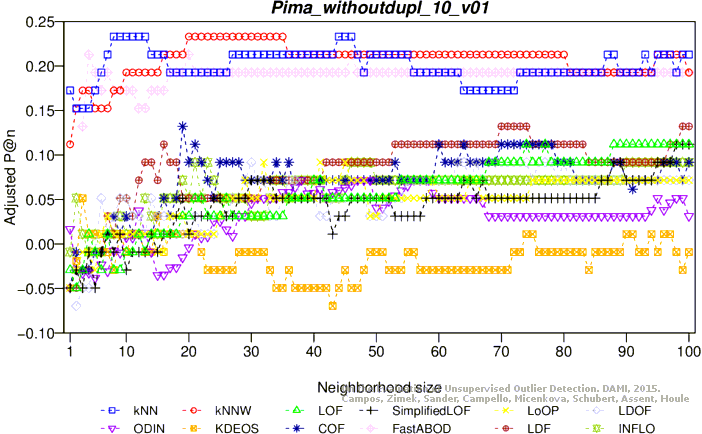

Adjusted precision at n

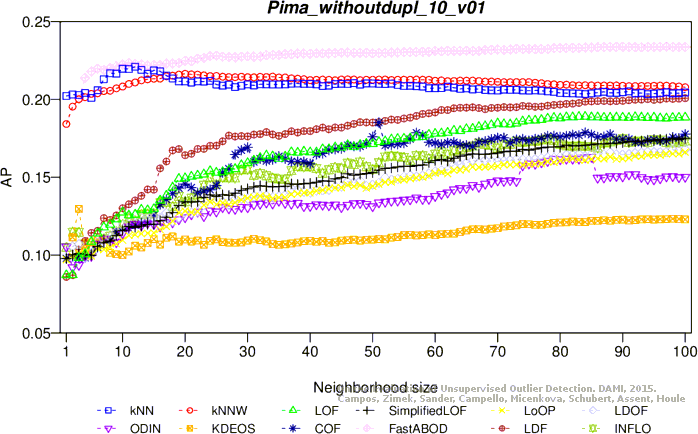

Average precision

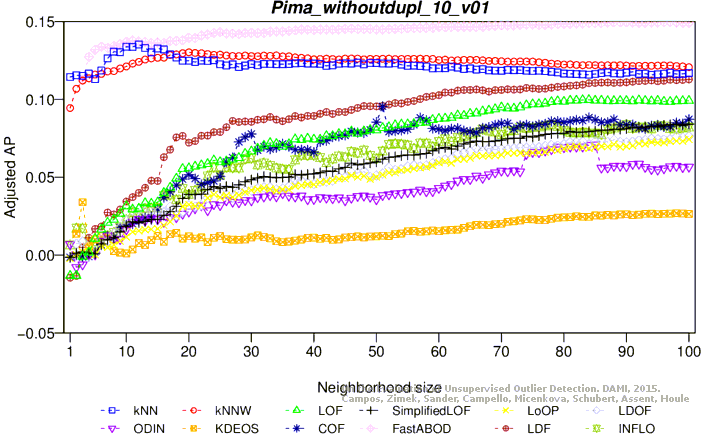

Adjusted average precision

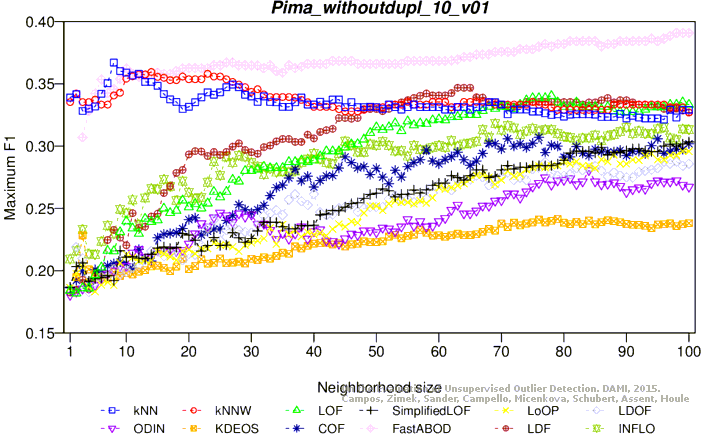

Maximum F1 score

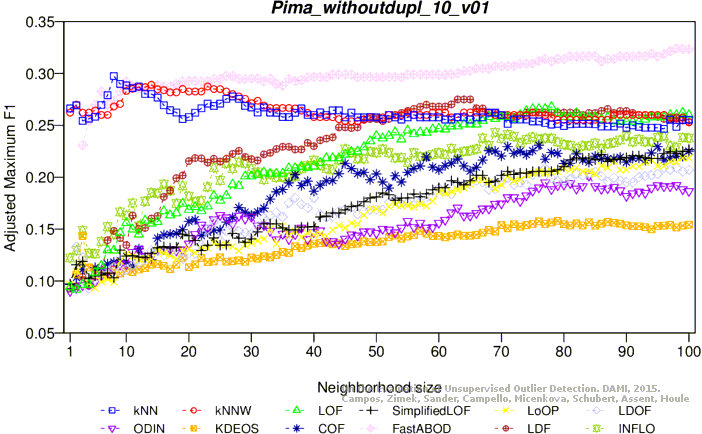

Adjusted maximum F1 score

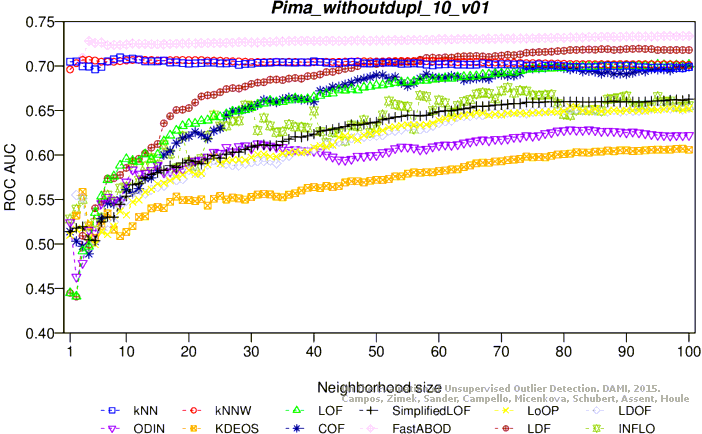

ROC AUC

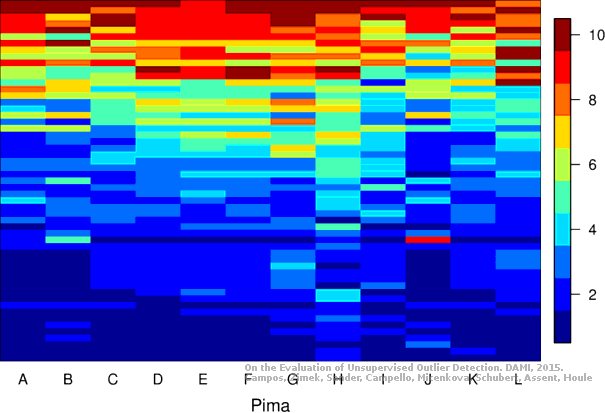

Diversity
A: KNN, B: KNNW, C: LOF, D: SimplifiedLOF, E: LoOP, F: LDOF
G: ODIN, H: KDEOS, I: COF, J: FastABOD, K: LDF, L: INFLO
