Supplementary Material for
On the Evaluation of Unsupervised Outlier Detection: Measures, Datasets, and an Empirical Study
by G. O. Campos, A. Zimek, J. Sander, R. J. G. B. Campello, B. Micenková, E. Schubert, I. Assent and M. E. Houle
Data Mining and Knowledge Discovery 30(4): 891-927, 2016, DOI: 10.1007/s10618-015-0444-8

Shuttle (version#01)

This dataset has been preprocessed in different variants in the literature. We follow the procedure of Zhang et al. [1], using classes 1, 3, 4, 5, 6 and 7 as inliers and class 2 as outlier, selecting 1000 inliers vs. 13 outliers (class 2). The selection of instances is based on the test set. The processed dataset consists of 1013 instances represented in 9 attributes, with 13 outliers (1.28%) and 1000 inliers (98.72%).

References:

[1] K. Zhang, M. Hutter, and H. Jin. A new local distance-based outlier detection approach for scattered real-world data. In Proc. PAKDD, pages 813-822, 2009.

Download all data set variants used (328.2 kB). You can also access the original data. (shuttle.tst, [1] only uses test set)

Normalized, without duplicates

This version contains 9 attributes, 1013 objects, 13 outliers (1.28%)

Download raw algorithm results (8.4 MB) Download raw algorithm evaluation table (46.3 kB)

Best Parameters

The following table contains the best (overall and per-method) results for each method and evaluation measure (when the same score was achieved twice, only the smallest k is given).
The Maximum F1-Measure is complimentary in addition to the measures in the original publication.

Algorithm k P@n Adj. P@n AP Adj. AP Max-F1 Adj. MF1 ROC AUC
KNN 3 0.38462 0.37662 0.38600 0.37802 0.58537 0.57998 0.98908
KNN 4 0.46154 0.45454 0.38494 0.37695 0.55319 0.54738 0.98746
KNNW 3 0.38462 0.37662 0.30430 0.29526 0.51429 0.50797 0.91754
KNNW 6 0.38462 0.37662 0.37464 0.36651 0.52941 0.52329 0.98592
KNNW 7 0.38462 0.37662 0.37166 0.36349 0.48649 0.47981 0.98615
LOF 6 0.30769 0.29869 0.31305 0.30412 0.56410 0.55844 0.92869
LOF 9 0.23077 0.22077 0.37864 0.37056 0.66667 0.66233 0.98962
SimplifiedLOF 9 0.38462 0.37662 0.29411 0.28494 0.46154 0.45454 0.98100
SimplifiedLOF 11 0.38462 0.37662 0.33752 0.32891 0.53333 0.52727 0.98692
SimplifiedLOF 15 0.23077 0.22077 0.31031 0.30135 0.55000 0.54415 0.98546
LoOP 9 0.30769 0.29869 0.20080 0.19041 0.35897 0.35064 0.95631
LoOP 20 0.30769 0.29869 0.34661 0.33812 0.57895 0.57347 0.98692
LDOF 16 0.23077 0.22077 0.12299 0.11159 0.23077 0.22077 0.92469
LDOF 57 0.15385 0.14285 0.25882 0.24919 0.47059 0.46371 0.97623
LDOF 62 0.23077 0.22077 0.26086 0.25125 0.42424 0.41676 0.97662
LDOF 77 0.15385 0.14285 0.25075 0.24101 0.39286 0.38496 0.97754
ODIN 46 0.26923 0.25973 0.38724 0.37927 0.55814 0.55240 0.98885
ODIN 56 0.33333 0.32467 0.38988 0.38195 0.55556 0.54978 0.98835
ODIN 81 0.56410 0.55844 0.36564 0.35739 0.59259 0.58730 0.94096
FastABOD 7 0.23077 0.22077 0.19030 0.17978 0.26471 0.25515 0.82708
FastABOD 82 0.23077 0.22077 0.23937 0.22948 0.35714 0.34879 0.83646
FastABOD 96 0.23077 0.22077 0.24103 0.23117 0.35714 0.34879 0.83754
FastABOD 100 0.23077 0.22077 0.24086 0.23099 0.35714 0.34879 0.83815
KDEOS 67 0.38462 0.37662 0.29315 0.28396 0.45714 0.45009 0.98108
KDEOS 70 0.46154 0.45454 0.31823 0.30937 0.50000 0.49350 0.98062
KDEOS 98 0.46154 0.45454 0.42922 0.42180 0.60000 0.59480 0.96577
KDEOS 100 0.46154 0.45454 0.43398 0.42662 0.60000 0.59480 0.96600
LDF 5 0.53846 0.53246 0.43072 0.42332 0.61538 0.61038 0.97462
LDF 8 0.38462 0.37662 0.43793 0.43062 0.70270 0.69884 0.99223
INFLO 6 0.30769 0.29869 0.20006 0.18967 0.36667 0.35843 0.88362
INFLO 13 0.23077 0.22077 0.31486 0.30596 0.59459 0.58932 0.94100
INFLO 15 0.23077 0.22077 0.34284 0.33430 0.59459 0.58932 0.98623
INFLO 19 0.23077 0.22077 0.33360 0.32494 0.53659 0.53056 0.98631
COF 16 0.53846 0.53246 0.40798 0.40028 0.59459 0.58932 0.98969
COF 19 0.53846 0.53246 0.45899 0.45196 0.64865 0.64408 0.99177
COF 20 0.53846 0.53246 0.46190 0.45491 0.64865 0.64408 0.99200

Plots

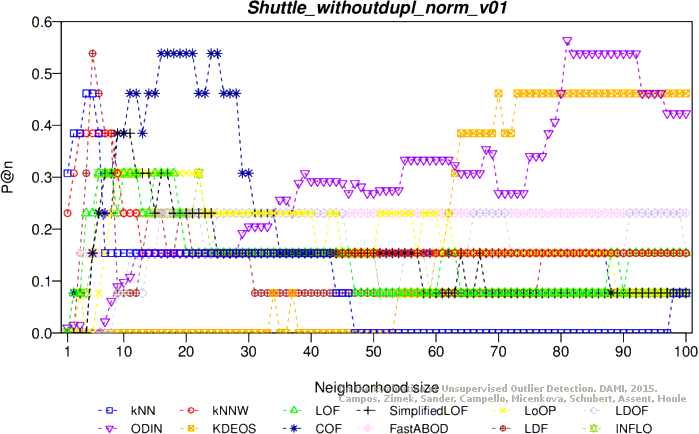

Precision at n

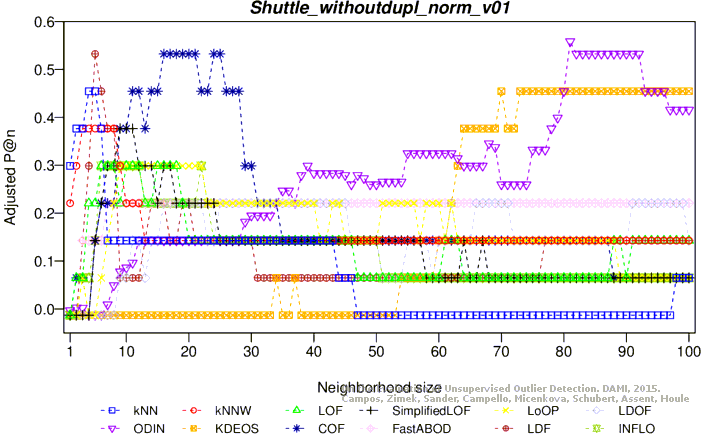

Adjusted precision at n

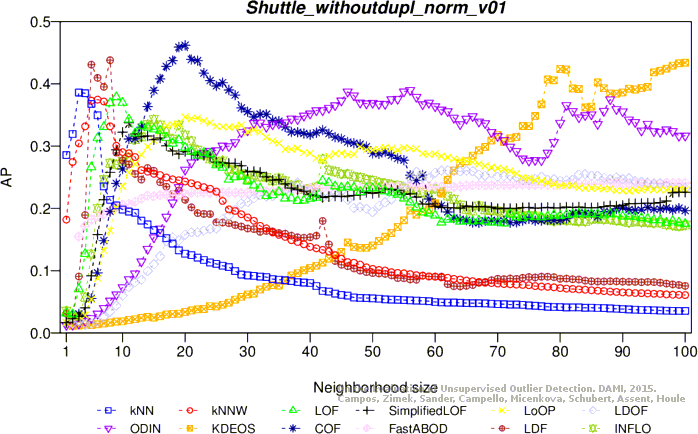

Average precision

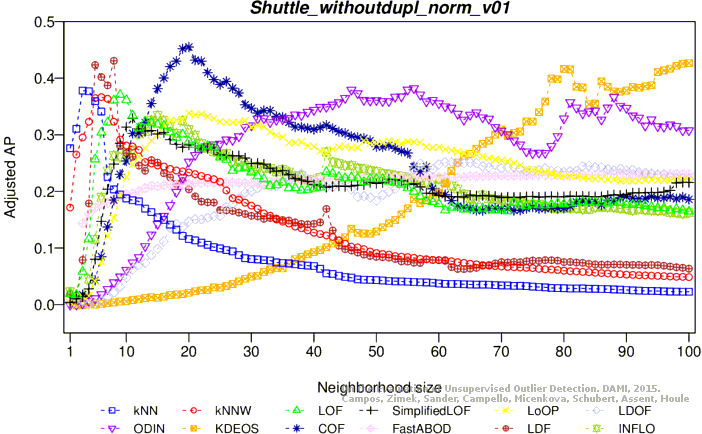

Adjusted average precision

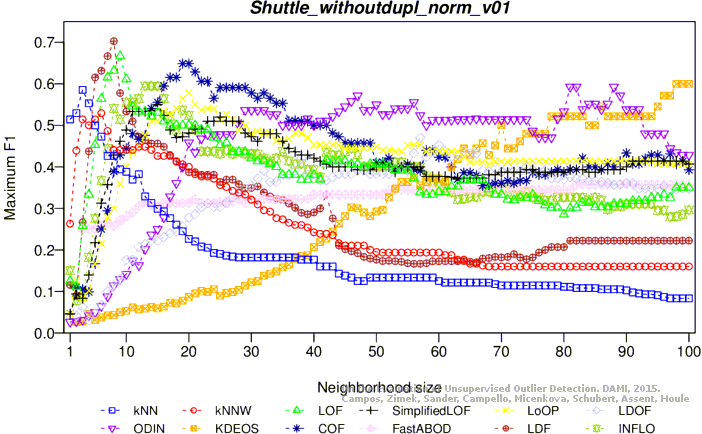

Maximum F1 score

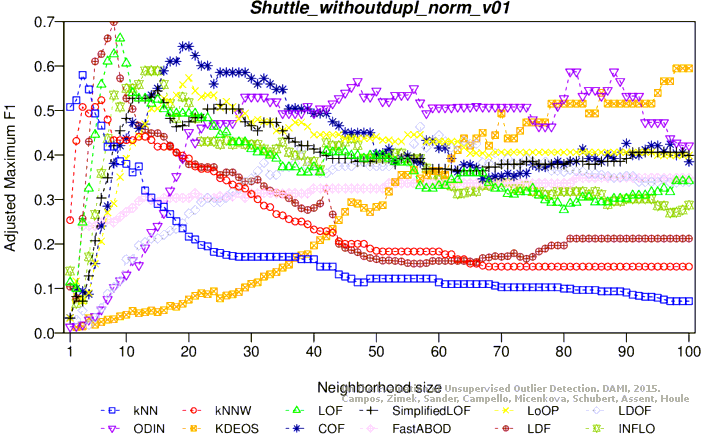

Adjusted maximum F1 score
ROC AUC

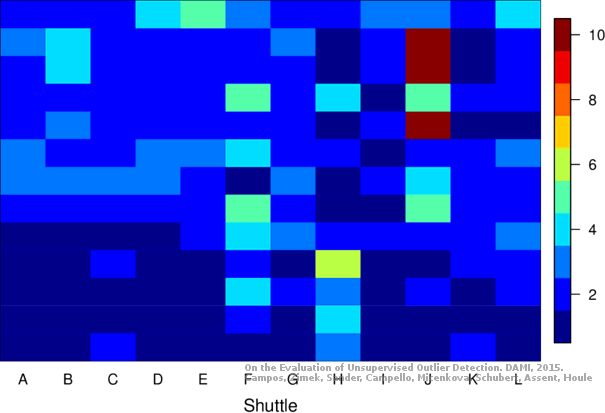

Diversity
A: KNN, B: KNNW, C: LOF, D: SimplifiedLOF, E: LoOP, F: LDOF
G: ODIN, H: KDEOS, I: COF, J: FastABOD, K: LDF, L: INFLO

Not normalized, without duplicates

This version contains 9 attributes, 1013 objects, 13 outliers (1.28%)

Download raw algorithm results (8.3 MB) Download raw algorithm evaluation table (44.5 kB)

Best Parameters

The following table contains the best (overall and per-method) results for each method and evaluation measure (when the same score was achieved twice, only the smallest k is given).
The Maximum F1-Measure is complimentary in addition to the measures in the original publication.

Algorithm k P@n Adj. P@n AP Adj. AP Max-F1 Adj. MF1 ROC AUC
KNN 2 0.23077 0.22077 0.14835 0.13728 0.25926 0.24963 0.80992
KNN 5 0.23077 0.22077 0.18879 0.17824 0.30380 0.29475 0.96496
KNNW 7 0.23077 0.22077 0.15511 0.14413 0.25806 0.24842 0.93515
KNNW 9 0.23077 0.22077 0.15912 0.14819 0.25000 0.24025 0.94362
KNNW 13 0.23077 0.22077 0.15514 0.14416 0.24000 0.23012 0.94585
LOF 4 0.30769 0.29869 0.11507 0.10356 0.30769 0.29869 0.62969
LOF 21 0.07692 0.06492 0.18285 0.17223 0.39130 0.38339 0.95715
LOF 79 0.07692 0.06492 0.20549 0.19516 0.45455 0.44745 0.93685
LOF 98 0.07692 0.06492 0.20225 0.19188 0.47619 0.46938 0.92308
SimplifiedLOF 14 0.30769 0.29869 0.17533 0.16461 0.35714 0.34879 0.93385
SimplifiedLOF 26 0.07692 0.06492 0.18432 0.17372 0.31579 0.30689 0.96754
SimplifiedLOF 93 0.07692 0.06492 0.22147 0.21135 0.47619 0.46938 0.95954
SimplifiedLOF 95 0.07692 0.06492 0.22065 0.21052 0.48780 0.48115 0.95746
LoOP 2 0.23077 0.22077 0.09070 0.07888 0.28571 0.27643 0.69569
LoOP 26 0.15385 0.14285 0.17358 0.16284 0.31579 0.30689 0.95992
LoOP 97 0.07692 0.06492 0.20922 0.19894 0.44444 0.43722 0.95369
LoOP 98 0.07692 0.06492 0.20959 0.19932 0.44444 0.43722 0.95385
LDOF 3 0.23077 0.22077 0.09675 0.08501 0.30000 0.29090 0.51015
LDOF 47 0.15385 0.14285 0.18127 0.17063 0.33333 0.32467 0.96377
LDOF 91 0.07692 0.06492 0.18936 0.17882 0.40909 0.40141 0.95969
LDOF 95 0.07692 0.06492 0.19040 0.17988 0.40000 0.39220 0.95938
ODIN 47 0.26154 0.25194 0.25108 0.24135 0.45000 0.44285 0.93788
ODIN 50 0.28994 0.28071 0.25128 0.24154 0.43902 0.43173 0.93050
FastABOD 3 0.15385 0.14285 0.06976 0.05767 0.18750 0.17694 0.63615
FastABOD 4 0.23077 0.22077 0.08641 0.07454 0.24000 0.23012 0.62692
KDEOS 52 0.00000 -0.01300 0.07039 0.05830 0.21212 0.20188 0.89346
KDEOS 70 0.15385 0.14285 0.07662 0.06462 0.15385 0.14285 0.86031
KDEOS 84 0.15385 0.14285 0.11446 0.10295 0.23529 0.22535 0.85262
KDEOS 89 0.15385 0.14285 0.15401 0.14301 0.23529 0.22535 0.85615
LDF 4 0.30769 0.29869 0.13649 0.12526 0.33333 0.32467 0.63923
LDF 8 0.30769 0.29869 0.25542 0.24574 0.45000 0.44285 0.96023
LDF 10 0.23077 0.22077 0.21041 0.20014 0.40816 0.40047 0.96662
LDF 48 0.07692 0.06492 0.19742 0.18699 0.46154 0.45454 0.92331
INFLO 10 0.30769 0.29869 0.12542 0.11405 0.30769 0.29869 0.83577
INFLO 50 0.07692 0.06492 0.19598 0.18553 0.36667 0.35843 0.96585
INFLO 68 0.07692 0.06492 0.20272 0.19236 0.39024 0.38232 0.96054
INFLO 97 0.07692 0.06492 0.19693 0.18649 0.46512 0.45816 0.93685
COF 2 0.23077 0.22077 0.07538 0.06336 0.26087 0.25126 0.61927
COF 5 0.15385 0.14285 0.09903 0.08732 0.27586 0.26645 0.66462
COF 26 0.15385 0.14285 0.15235 0.14133 0.25000 0.24025 0.95038

Plots

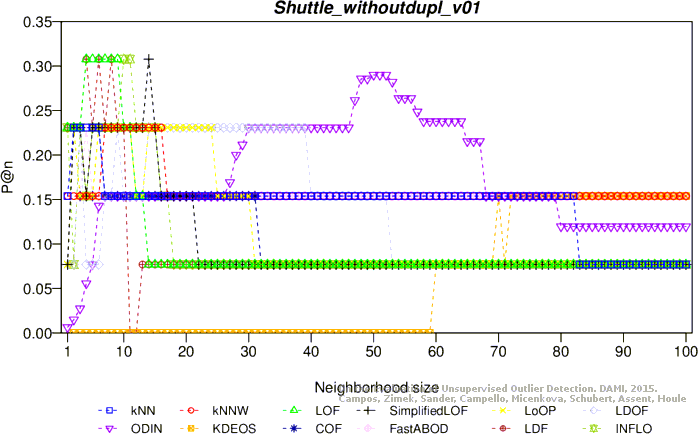

Precision at n

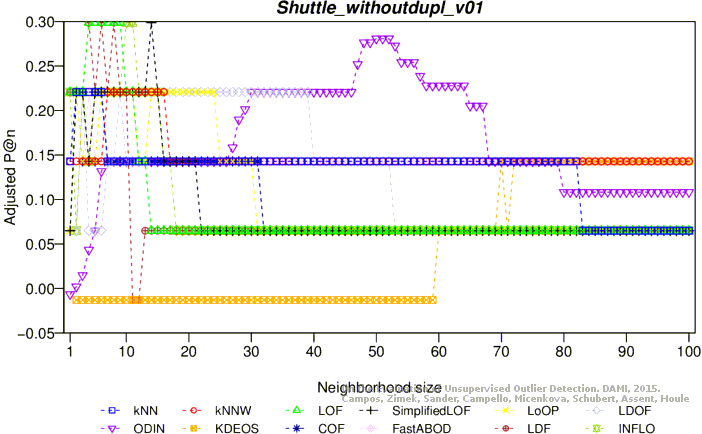

Adjusted precision at n

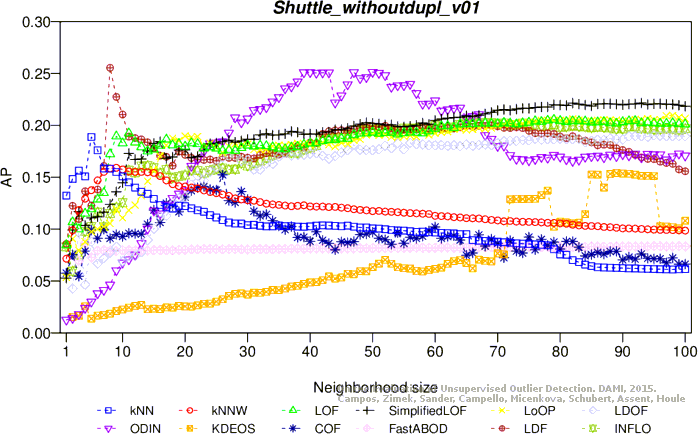

Average precision
Adjusted average precision

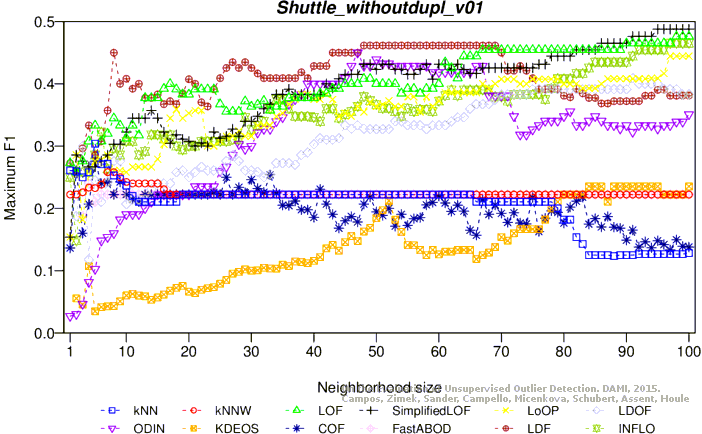

Maximum F1 score

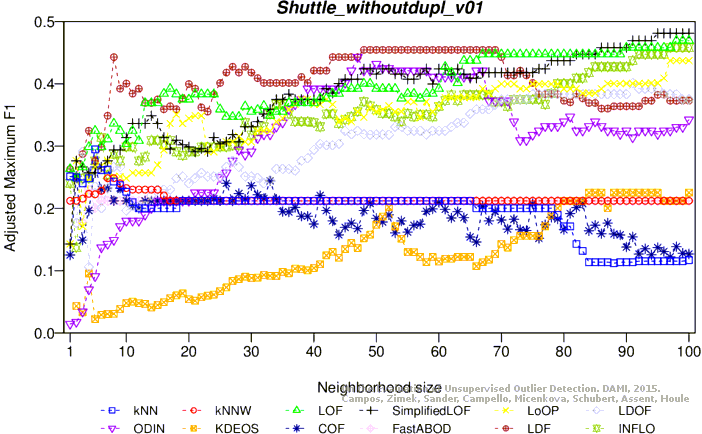

Adjusted maximum F1 score

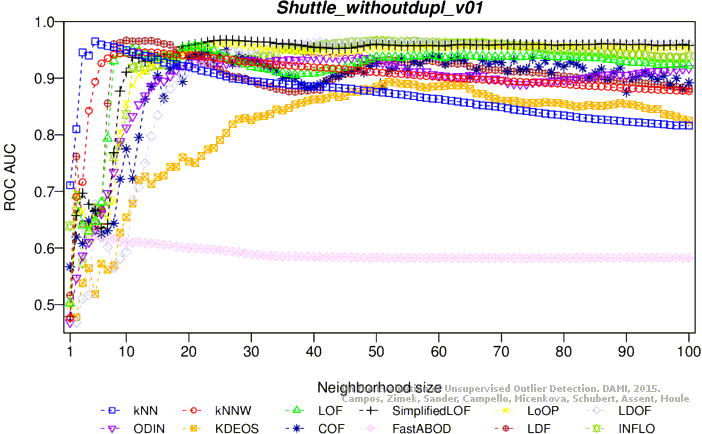

ROC AUC

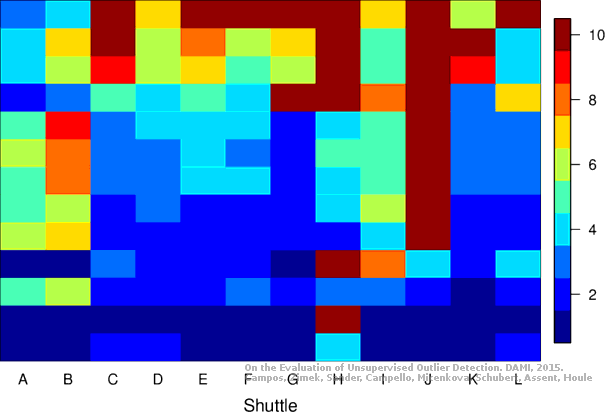

Diversity
A: KNN, B: KNNW, C: LOF, D: SimplifiedLOF, E: LoOP, F: LDOF
G: ODIN, H: KDEOS, I: COF, J: FastABOD, K: LDF, L: INFLO
