Supplementary Material for
On the Evaluation of Unsupervised Outlier Detection: Measures, Datasets, and an Empirical Study
by G. O. Campos, A. Zimek, J. Sander, R. J. G. B. Campello, B. Micenková, E. Schubert, I. Assent and M. E. Houle
Data Mining and Knowledge Discovery 30(4): 891-927, 2016, DOI: 10.1007/s10618-015-0444-8

PenDigits (version#01)

The 10 classes contained in this data set correspond to the digits from 0 to 9, with examples created by different hand writings. Class 4, defined here as outlier, was downsampled to only 20 objects. After the preprocessing, this database has 16 numeric attributes and 9868 instances, divided into 20 outliers (0.2%) and 9848 inliers (99.8%). This dataset is already normalized, i.e., all 16 attributes (spatial coordinates) have the same range [0,100]. It has been used in this form in [1,2].

References:

[1] H.-P. Kriegel, P. Kroeger, E. Schubert, and A. Zimek. Interpreting and unifying outlier scores. In Proc. SDM, pages 13-24, 2011.
[2] E. Schubert, R. Wojdanowski, A. Zimek, and H.-P. Kriegel. On evaluation of outlier rankings and outlier scores. In Proc. SDM, pages 1047-1058, 2012.

Download all data set variants used (2.1 MB). You can also access the original data. (merge train and test [pendigits.tes and pendigits.tra])

Normalized, without duplicates

This version contains 16 attributes, 9868 objects, 20 outliers (0.20%)

Download raw algorithm results (83.1 MB) Download raw algorithm evaluation table (57.4 kB)

Best Parameters

The following table contains the best (overall and per-method) results for each method and evaluation measure (when the same score was achieved twice, only the smallest k is given).
The Maximum F1-Measure is complimentary in addition to the measures in the original publication.

Algorithm k P@n Adj. P@n AP Adj. AP Max-F1 Adj. MF1 ROC AUC
KNN 1 0.00000 -0.00203 0.03741 0.03546 0.10345 0.10163 0.93188
KNN 12 0.00000 -0.00203 0.07243 0.07055 0.15603 0.15431 0.98681
KNN 19 0.00000 -0.00203 0.06984 0.06795 0.17143 0.16975 0.98505
KNNW 1 0.05000 0.04807 0.04703 0.04509 0.13333 0.13157 0.92636
KNNW 24 0.00000 -0.00203 0.06517 0.06327 0.14978 0.14805 0.98542
KNNW 26 0.00000 -0.00203 0.06568 0.06378 0.14346 0.14172 0.98548
LOF 1 0.05000 0.04807 0.00896 0.00695 0.06452 0.06262 0.62443
LOF 5 0.00000 -0.00203 0.00815 0.00614 0.08000 0.07813 0.48821
LOF 60 0.00000 -0.00203 0.01569 0.01369 0.04016 0.03821 0.91466
LOF 69 0.00000 -0.00203 0.01568 0.01368 0.04255 0.04061 0.91680
SimplifiedLOF 2 0.05000 0.04807 0.01485 0.01285 0.06452 0.06262 0.63034
SimplifiedLOF 3 0.05000 0.04807 0.01573 0.01373 0.11538 0.11359 0.62107
SimplifiedLOF 98 0.00000 -0.00203 0.01486 0.01286 0.04082 0.03887 0.91070
LoOP 2 0.05000 0.04807 0.01595 0.01396 0.07143 0.06954 0.63279
LoOP 7 0.00000 -0.00203 0.01007 0.00806 0.08571 0.08386 0.55128
LoOP 99 0.00000 -0.00203 0.01471 0.01271 0.03974 0.03778 0.90398
LDOF 3 0.05000 0.04807 0.03148 0.02951 0.09091 0.08906 0.69827
LDOF 42 0.00000 -0.00203 0.00593 0.00391 0.03175 0.02978 0.71811
ODIN 81 0.01875 0.01676 0.01603 0.01403 0.04444 0.04250 0.91463
ODIN 96 0.00000 -0.00203 0.01729 0.01530 0.04103 0.03908 0.92255
ODIN 97 0.00000 -0.00203 0.01763 0.01563 0.04188 0.03994 0.92250
FastABOD 5 0.05000 0.04807 0.03720 0.03525 0.12000 0.11821 0.92775
FastABOD 6 0.05000 0.04807 0.03320 0.03123 0.12245 0.12067 0.92428
FastABOD 16 0.10000 0.09817 0.03261 0.03064 0.10000 0.09817 0.94058
FastABOD 94 0.00000 -0.00203 0.03329 0.03132 0.08333 0.08147 0.96105
KDEOS 18 0.05000 0.04807 0.00555 0.00353 0.05556 0.05364 0.53232
KDEOS 33 0.05000 0.04807 0.05261 0.05069 0.09524 0.09340 0.63018
KDEOS 37 0.05000 0.04807 0.05277 0.05085 0.09524 0.09340 0.65215
KDEOS 100 0.00000 -0.00203 0.00691 0.00490 0.04348 0.04154 0.81132
LDF 3 0.05000 0.04807 0.00632 0.00430 0.05556 0.05364 0.53295
LDF 10 0.05000 0.04807 0.02266 0.02067 0.10714 0.10533 0.89785
LDF 60 0.00000 -0.00203 0.02438 0.02240 0.06642 0.06452 0.95337
LDF 72 0.00000 -0.00203 0.02404 0.02205 0.06289 0.06099 0.95450
INFLO 1 0.00000 -0.00203 0.00712 0.00510 0.03659 0.03463 0.60988
INFLO 2 0.00000 -0.00203 0.01458 0.01258 0.07018 0.06829 0.67489
INFLO 99 0.00000 -0.00203 0.01274 0.01073 0.03704 0.03508 0.89086
COF 81 0.10000 0.09817 0.05143 0.04950 0.15789 0.15618 0.95506
COF 90 0.10000 0.09817 0.05711 0.05519 0.14458 0.14284 0.95792
COF 99 0.15000 0.14827 0.05026 0.04833 0.15000 0.14827 0.96097

Plots

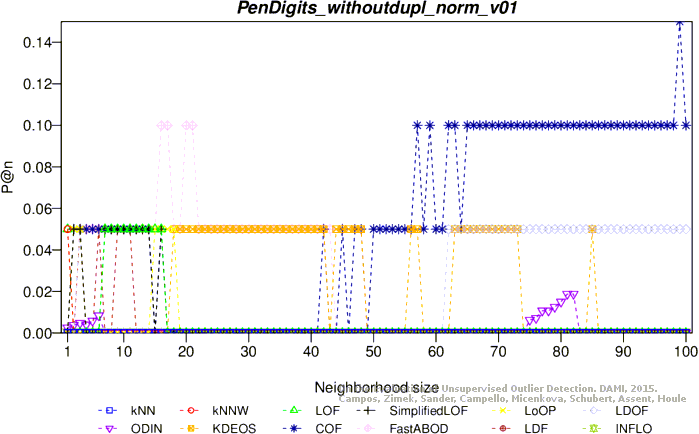

Precision at n

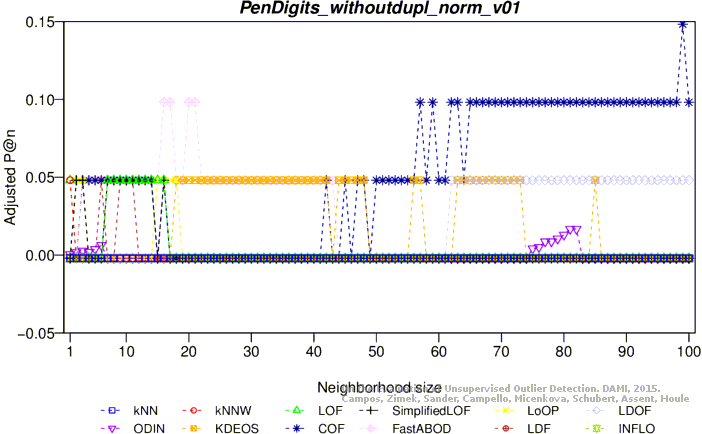

Adjusted precision at n

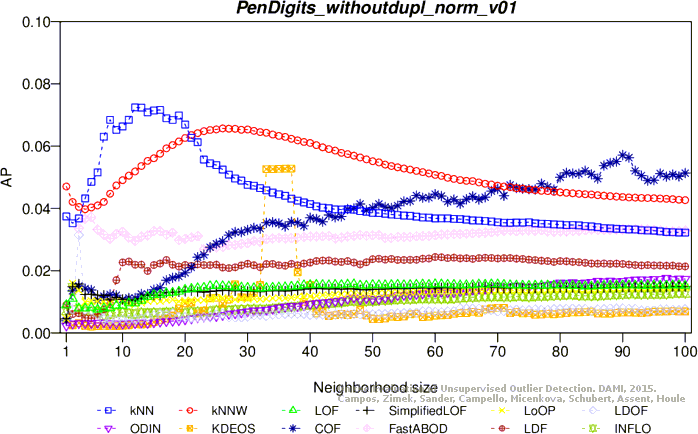

Average precision

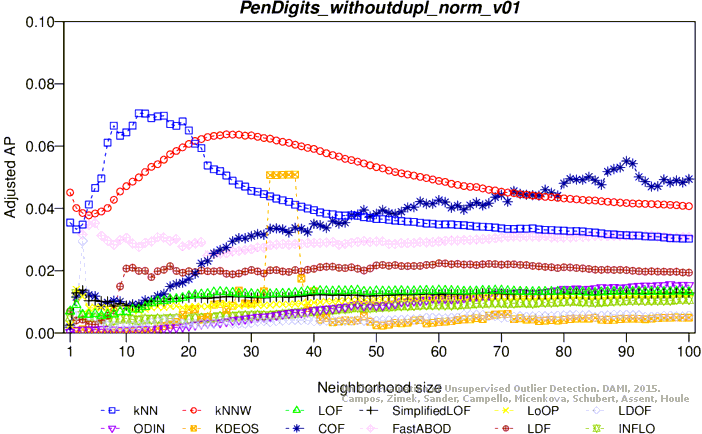

Adjusted average precision
Maximum F1 score
Adjusted maximum F1 score
ROC AUC
Diversity
A: KNN, B: KNNW, C: LOF, D: SimplifiedLOF, E: LoOP, F: LDOF
G: ODIN, H: KDEOS, I: COF, J: FastABOD, K: LDF, L: INFLO
